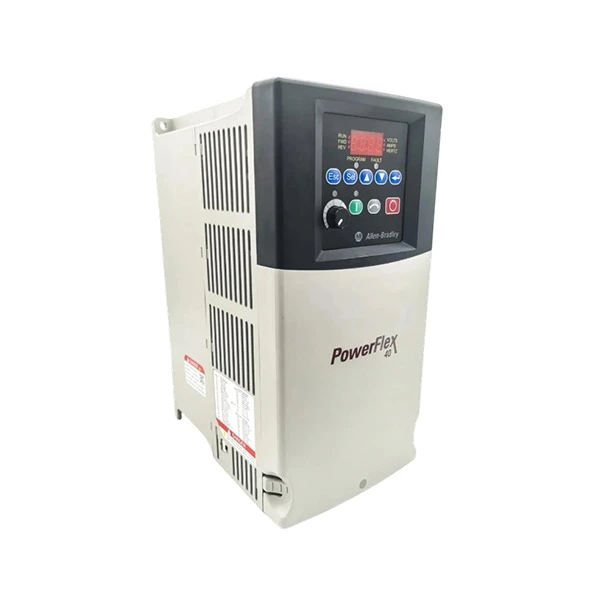

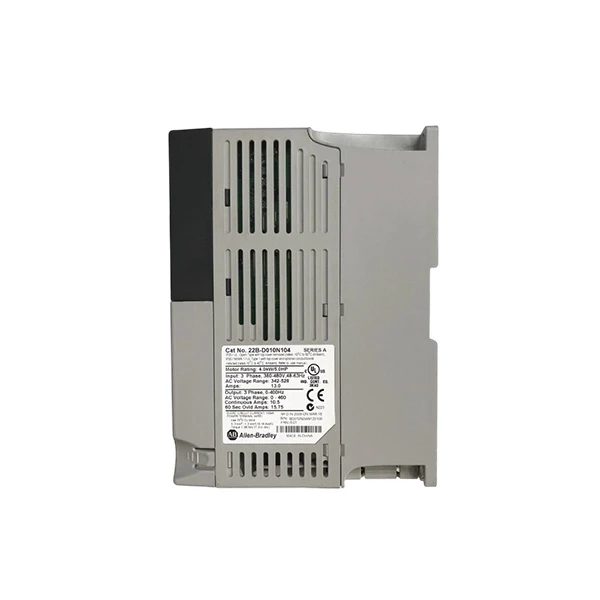

Allen-Bradley 22B-D010N104
Brand: Allen-Bradley
Model: 22B-D010N104
Inventory situation: Goods are available in stock.
Product features
The Allen-Bradley 22B-D010N104 is a high-performance PowerFlex 40 AC drive intended for industrial motor control applications. This variable frequency drive (VFD) has a 3-phase input voltage range of 380-480V AC and produces a continuous output power of 4kW (5 HP) at 10.5A output current. Its IP20 enclosure (NEMA/UL open type) ensures dependable operation in most industrial settings, and the sensorless vector control technology provides precise speed and torque regulation for smooth motor performance.
Integral RS485 communication allows for easy integration with PLCs or HMIs, a digital keypad with LED display for quick parameter adjustments, and programmable acceleration/deceleration rates to improve system efficiency. The Allen-Bradley 22B-D010N104 drive supports V/Hz control and sensorless vector control, making it ideal for applications such as pumps, fans, conveyors, and machine tools in manufacturing, energy management, and process automation.
The 22B-D010N104 is designed with industrial-grade protection, including overload, overvoltage, and short-circuit protection, to protect both equipment and operators. Its compact frame size B (180.07 x 100 x 136 mm) and panel-mount design make installation easier, while the -40°C to 85°C storage temperature range ensures durability in harsh environments.
This drive is UL and CE certified, which means it meets global industrial safety standards. Whether you need to control motor speed in a factory automation line or save energy in HVAC systems, the Allen-Bradley 22B-D010N104 PowerFlex 40 drive provides dependable performance and flexibility. Explore its capabilities for your industrial motor control requirements today.
Specifications
|
Voltage Range |
342-528V AC three-phase |
|---|---|
|
Frequency |
50/60Hz |
|
Protection Grade |
IP20 (Open structure, suitable for indoor dry environments) |
|
Dimensions |
180.07mm (W) × 100mm (H) × 136mm (D) |
|
Weight |
Approximately 2.22kg |
|
Operating Temperature |
0°C - 60°C |
|
International Certifications |
CE, UL, C-Tick, VDE, etc. |
|
EMC Characteristics |
No built-in CE filter (external filter available as optional) |
Application Scenarios
The 22B-D010N104 improves factory automation by controlling conveyor belts, mixers, and robotic arms. Its eight preset speeds and four acceleration/deceleration ramps allow for flexible adjustments for a variety of tasks, such as product sorting or component assembly. For example, in a food processing plant, the drive keeps belt speeds consistent to prevent product damage while reducing energy waste during low-demand periods.
In warehouses and logistics, the 22B-D010N104 provides power to conveyor systems and forklift motors. Its closed-loop control and slip compensation features provide smooth starts and stops, reducing product jitters. The drive's PAM (Pulse Amplitude Modulation) control mode improves efficiency in heavy-duty applications like moving pallets in distribution centers.
The 22B-D010N104's energy-saving mode automatically adjusts motor power during light loads to reduce electricity costs. It optimizes airflow in industrial fans, reducing noise and wear. Furthermore, its synchronous switching control enables a single drive to control multiple motors sequentially, saving up to 50% on capital costs in large-scale projects such as oil pipelines.
