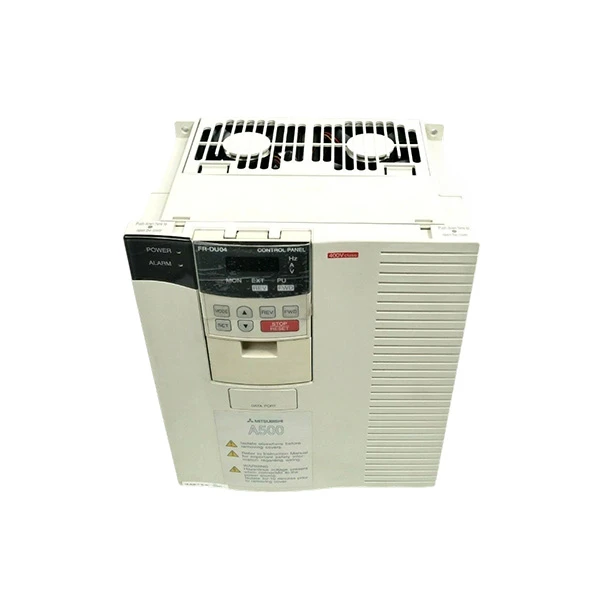

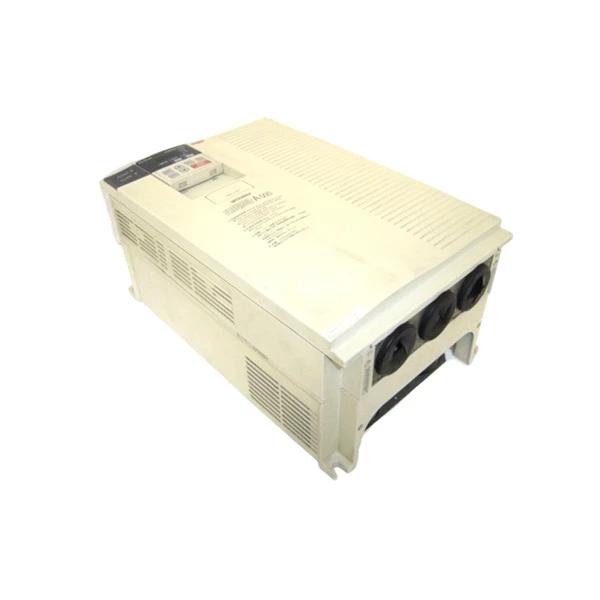

Mitsubishi FR-A540-11K-EC

Brand: Mitsubishi
Model: FR-A540-11K-EC

Inventory situation: Goods are available in stock.

Product features

The Mitsubishi FR-A540-11K-EC is a three-phase, 460-volt AC variable-frequency drive developed for controlling industrial motors. This 11-kW inverter from the FREQROL A500 series can power motors up to 15 HP and has a rated current of 17 A (SLD), making it perfect for applications such as pumps, fans, and conveyors in manufacturing plants or HVAC systems. It weighs 11.93 kg and has an IP20 casing that repels dust and light particles, allowing it to perform reliably in harsh situations.

The FR-A540-11K-EC, which uses sensorless vector control, provides precise speed regulation (0.5% accuracy) and 200% torque at 0 Hz, allowing for smooth start-ups of high loads like cranes and elevators. Its built-in PLC simplifies complex automation logic, and the RS-485 interface connects it to production systems for centralized monitoring. The unit also has extensive protection: overcurrent, overvoltage, and thermal shutdown safeguards protect against voltage variations (323-528 V) and overloads (150% for 60 seconds).

The Mitsubishi FR-A540-11K-EC optimum excitation control boosts energy efficiency by reducing power consumption by 10-15% during partial loads, making it especially useful for variable-speed pumps and HVAC systems. With a wide operating temperature range (-10°C to 50°C) and forced-air cooling, it can tolerate extreme temperatures while remaining durable.

Specifications

Model	FR-A540-11K-EC
Series	FR-A500
Input Voltage	Three-phase 380-480V AC (allowable fluctuation: 323-528V AC)
Input Frequency	50/60 Hz (±5%)
Input Current	25A (at full load for 11kW motor, 380V)
Dimensions	400 mm × 250mm × 200mm (Width × Height × Depth)
Operating Temperature	-10°C to +50°C (derating above 40°C; decrease by 1% for each 1°C rise)
EMC Characteristics	Built-in Class A filter

Application Scenarios

In factories, the FR-A540-11K-EC is perfect for controlling conveyor belts, pumps, and compressors. Adjusting motor speed based on workload reduces energy consumption by 20-60% as compared to traditional fixed-speed systems. For example, in a packaging line, the drive ensures effective material handling while reducing electricity expenses. Its overload capabilities (150% for 60 seconds) can handle unexpected surges in demand, preventing downtime.

This VFD is ideal for municipal and industrial water pumping applications. The built-in PID control maintains a consistent water pressure, reducing water hammer and minimizing pipe damage. In a wastewater treatment plant, the FR-A540-11K-EC adjusts pump speed based on flow rates, saving energy and extending equipment life. It also has multi-pump control, which automatically switches between units to optimize performance.

The FR-A540-11K-EC controls the fan and chiller motors in HVAC systems. By adapting ventilation and cooling to real-time demand, energy consumption is reduced by 30-50%. For example, in an office building, the drive keeps indoor temperatures steady while reducing noise from fan operation. Its forced-air cooling system keeps the drive running even in high-temperature circumstances.

FAQ

Q: What is the Mitsubishi FR-A540-11K-EC used for?

A: The FR-A540-11K-EC is generally used to regulate the speed of three-phase induction motors in industries such as manufacturing, water treatment, and HVAC. It can adjust the motor speed based on load requirements, saving energy and cutting operational costs. This 11kW inverter is great for precisely controlling the speed of pumps, fans, conveyors, and other machinery.

Q: What are the key features of the FR-A540-11K-EC?

A: This model has several distinguishing features. The device has an input voltage range of 380-460V AC and an output frequency range of 0.2-400Hz, enabling flexibility in operation. This product has a 150% overload capacity for 60 seconds, making it ideal for handling temporary high loads. Even in the most demanding conditions, the forced air conditioning system delivers reliable results. It offers Modbus RTU connection for smooth interaction with industrial systems, making it an adaptable solution for automation configurations.

Q: What voltage does the FR-A540-11K-EC work with?

A: This inverter accepts a three-phase 380-460V AC power supply. It can handle slight voltage fluctuations within the specified range; however, utilizing it at voltages outside of this range may cause harm. Before installing, always verify that the input voltage is compatible with your local power system.
