Omron 3G3MX2-A4022-E

Omron 3G3MX2-A4022-E
Details:
Brand: Omron
Model: MX2 3G3MX2-A4022-E
Inventory situation: Goods are available in stock.

It belongs to the Omron Inverter MX2 series, with a power of 2.2kW. It has obvious advantages in starting torque. The starting torque at 0.3Hz exceeds 200%, and there is also a 150% torque at zero frequency, which can meet the requirements of heavy load and frequent start-stop operations. Its closed-loop vector function is powerful, possessing servo functions such as position control, homing (return to origin), and electronic gear ratio, enabling high-precision control. Meanwhile, it has a comprehensive protection mechanism, including over-current and over-voltage suppression functions as well as micro-surge voltage suppression function, which can effectively protect the safety of the equipment and circuits. It adopts components with long service life such as fans and capacitors, and is equipped with an EMC noise filter.
Send Inquiry
Description
Send Inquiry
Omron 3G3MX2-A4022-E

Rated Power: Applicable to motors of 4.0kW.
Input Voltage: Three-phase 380V to 480V.
Output Voltage: Three-phase output, with the maximum output voltage reaching the input voltage.
Protection Grade: IP20.

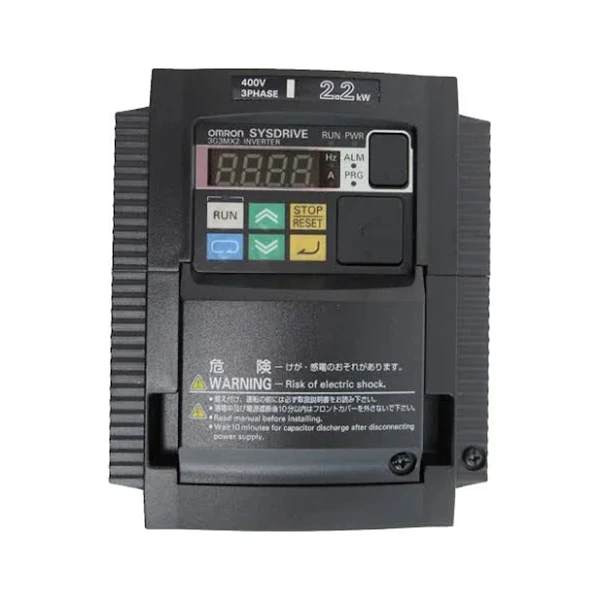

MX2 3G3MX2-A4022-E

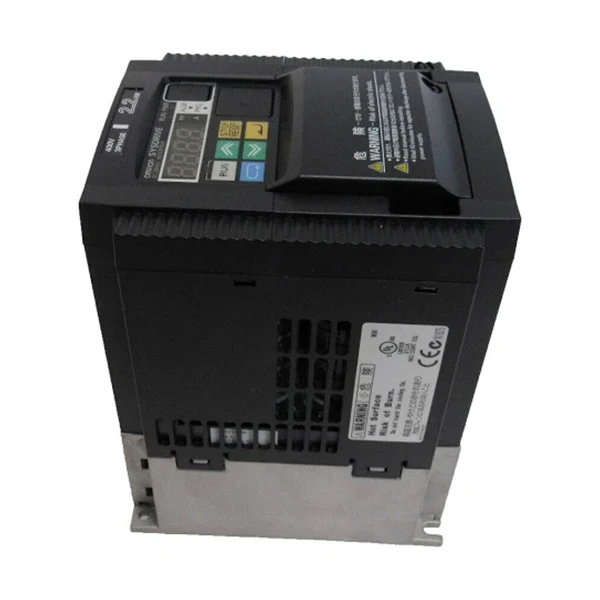

Omron MX2 3G3MX2-A4022-E

Cooling Method: Forced Air Cooling.
Control Modes: Offering multiple control modes such as V/F control, vector control, and direct torque control.
Program Functions: Supporting various programming functions, for example, PID control, acceleration/ deceleration settings, etc.



Product Advantages



The Omron 3G3MX2-A4022-E is a high-performance variable frequency drive (VFD) designed for industrial motor control applications. Part of the MX2 series, this compact inverter offers sensorless vector control and supports three-phase 400V input, making it ideal for driving motors up to 2.2kW (HD) or 3.0kW (ND). With a rated output current of 5.5A (HD) and 6.9A (ND), it delivers reliable performance in demanding environments like manufacturing plants and water treatment systems.



Key features include 200% starting torque at 0.5Hz, ensuring smooth operation even at low speeds. The inverter supports frequency outputs up to 400Hz (or 1000Hz in high-frequency mode with specific settings), allowing flexibility for high-speed applications. Its IP20-rated enclosure protects against dust and solid particles, while the robust design ensures durability in industrial settings.



The 3G3MX2-A4022-E includes multiple communication protocols, such as Modbus RTU, EtherCAT, and Ethernet/IP, enabling seamless integration with PLCs and automation systems. Built-in functions like PID control, 16-segment multi-speed operation, and DC braking enhance versatility for applications like conveyor belts, pumps, and fans. The unit also features USB connectivity for easy programming and parameter adjustments.



Ideal for industries like food processing, HVAC systems, and automotive manufacturing, the Omron 3G3MX2-A4022-E combines advanced technology with user-friendly design. Its compatibility with Omron's CX-Drive software allows for easy configuration, while the sensorless vector control eliminates the need for external encoders, reducing costs and complexity. For businesses seeking reliable motor control solutions with energy-saving capabilities, this inverter is a cost-effective choice.



FAQ

Q: How a Variable Frequency Drive Works?

A: A Variable Frequency Drive (VFD) works by adjusting the speed of an AC motor through these steps:
1. "AC to DC Conversion": The VFD converts incoming AC power to DC.
2. "Smoothing": DC power is stabilized through capacitors.
3. "DC to Variable AC": The VFD converts DC back to AC at an adjustable frequency and voltage.
By changing the AC frequency, the VFD controls motor speed: higher frequency means faster

Q: What Does a Variable Frequency Drive Do?

A: A Variable Frequency Drive (VFD) controls the speed and torque of an AC motor by adjusting the frequency and voltage of the power supplied to it. This allows precise motor control, improves energy efficiency, enables soft starts/ stops, and reduces mechanical wear, making it ideal for applications like HVAC systems, pumps, fans, and conveyors.

Q: What is the Omron 3G3MX2-A4022-E and what are its key features?

A: The Omron 3G3MX2-A4022-E is a high-performance inverter designed for industrial motor control applications. It features advanced energy-saving functions, reliable overload protection, and user-friendly programming interfaces. Ideal for HVAC systems, conveyor belts, and pumps, this inverter ensures smooth operation and energy efficiency in industrial automation.

Q: How does the Omron 3G3MX2-A4022-E improve energy efficiency in industrial applications?

A: The 3G3MX2-A4022-E inverter enhances energy efficiency by providing precise voltage and frequency control for motor operations. Its built-in energy-saving functions optimize power consumption, reduce operational costs, and contribute to sustainable industrial processes.

Q: Is the Omron 3G3MX2-A4022-E compatible with other industrial automation components?

A: Yes, the Omron 3G3MX2-A4022-E inverter supports compatibility with various industrial automation systems, including PLCs, sensors, and motor protection devices. It incorporates communication protocols such as Modbus and Ethernet, facilitating integration into complex automation setups.
