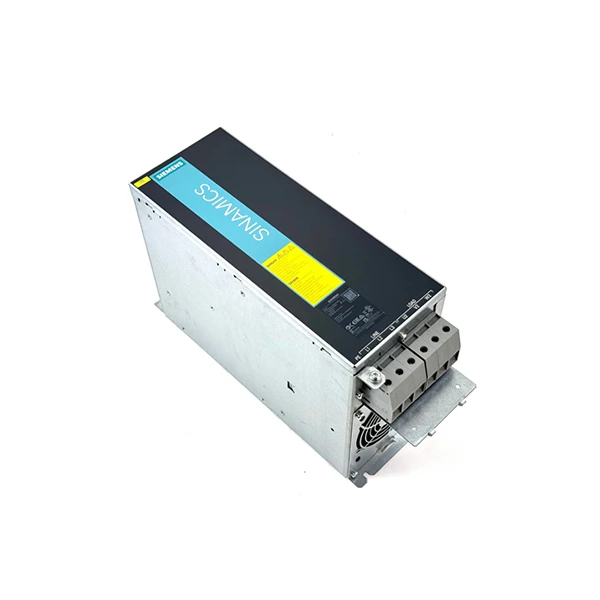

Siemens 6SL3100-0BE23-6AB0

Brand: Siemens
Model: 6SL3100-0BE23-6AB0

Siemens 6SL3100-0BE23-6AB0

Inventory situation: Goods are available in stock.

Product features

A dependable active interface module for the SINAMICS S120 drive system, the Siemens 6SL3100-0BE23-6AB0 is made especially for 36 kW active line modules. With a rated current of 58A and a rated power of 36kW, the Siemens 6SL3100-0BE23-6AB0 is appropriate for medium-power industrial equipment and runs on 380~480V three-phase AC power (50/60Hz). Its integrated 1440Ω resistor (with a tolerance of ±10%) improves safety and dependability while in use, and it uses voltage vector control and PWM regulation to guarantee steady and precise operation.

This Siemens 6SL3100-0BE23-6AB0 active interface module's physical design includes a small Booksize frame that measures 150 x 270 x 380 mm and weighs 18.5 kg, making it easy to install in confined spaces. Its IP20 protection rating ensures durability in industrial settings by successfully keeping out dust and small objects. Additionally, it satisfies international safety standards and is UL certified for use in the US and Canada.

A screw-type power interface, a 24VDC electronic power interface (complete with a 24V terminal adapter included in the delivery), and a DC link interface connected by an integrated DC busbar are the three key interfaces that Siemens 6SL3100-0BE23-6AB0 includes for smooth integration. Bidirectional energy flow is supported by these interfaces, which facilitate a seamless connection between the controller and the active line module. This is a significant benefit for applications that need energy feedback.

Specifications

Model	6SL3100-0BE23-6AB0
Product Series	SINAMICS S120 Drive System
Product Name	SINAMICS S120 Active Line Module
Energy Efficiency Class	RoHS compliant
Power Supply Voltage	380~480V 3AC (three-phase)
Weight	18.5 kg
Protection Rating	IP20
Dimensions (W × D × H)	150×270×380 mm

Application scenarios

Siemens 6SL3100-0BE23-6AB0 is an essential part of automated production lines, such as those for electronic components, automotive parts, or home appliances. Conveyors, robotic arms, and assembly machines run smoothly thanks to its seamless connection of controllers to active line modules via voltage vector control and PWM regulation. The module's IP20 protection rating protects it from dust and ensures long-term stability in busy factory environments. Its Booksize design makes it easy to fit into crowded control cabinets. Its energy feedback feature recovers excess power during deceleration and feeds it back to the grid rather than wasting it as heat, which is beneficial for manufacturers looking to reduce their energy expenses.

Siemens 6SL3100-0BE23-6AB0 is also widely used in CNC machine tools. To create precise workpieces, milling, turning, and grinding machines need to have high-precision speed and torque control. The steady performance and 58A rated current of this module supply the reliable power required for fine machining and high-speed cutting. Because of its UL certification, which satisfies stringent safety requirements for industrial equipment, it can also be used in manufacturing facilities across North America.

Siemens 6SL3100-0BE23-6AB0 is a great asset to material handling systems, such as automated guided vehicles (AGVs), conveyors, and forklifts. These systems frequently run in repetitive cycles of acceleration and deceleration, and the energy feedback feature of the module greatly lowers electricity consumption. Logistics centers and warehouses, where machinery operates for extended periods of time under heavy loads, have environmental and durability requirements that are met by its sturdy construction and RoHS compliance.

FAQ

Q: What is the Siemens 6SL3100-0BE23-6AB0?

A: An Active Interface Module from the SINAMICS S120 drive system is the Siemens 6SL3100-0BE23-6AB0. It is intended exclusively for use with a 36kW Active Line Module. Consider it the vital control center that oversees communication and power flow for a high-power motor drive.

Q: How do I install and configure it?

A: It is strongly advised to refer to the official Siemens documentation that comes with the module for specific installation and configuration instructions. The module typically has a booksize compact design and is mounted on a DIN rail. The supplied terminals and sockets are used to make electrical connections for DRIVE-CLiQ and power. Siemens engineering tools like TIA Portal and STARTER are commonly used for configuration.

Q: How do I choose a compatible power module?

A: The 6SL3100-0BE23-6AB0 is specifically made to work with a 36kW Active Line Module. Make sure the Active Line Module's power rating corresponds with this interface module when constructing a drive system. It is not supported to use components outside of the designated power range, as this may result in damage or malfunctions.
