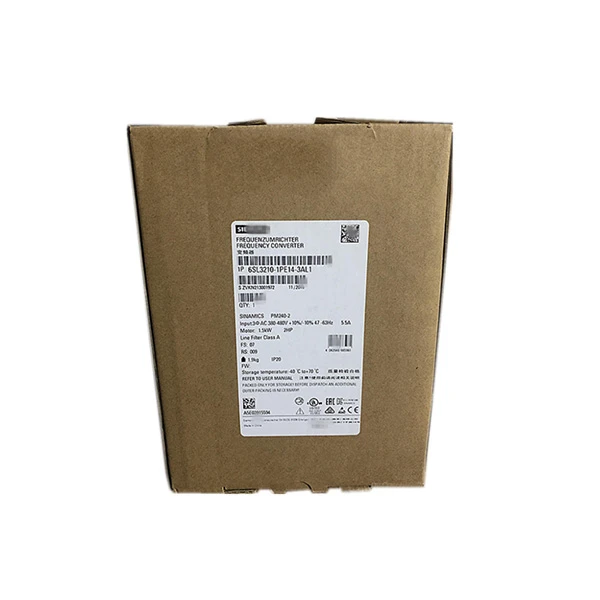

Siemens 6SL3210-1PE14-3AL1

Brand: Siemens
Model: 6SL3210-1PE14-3AL1

Inventory situation: Goods are available in stock.

Product features

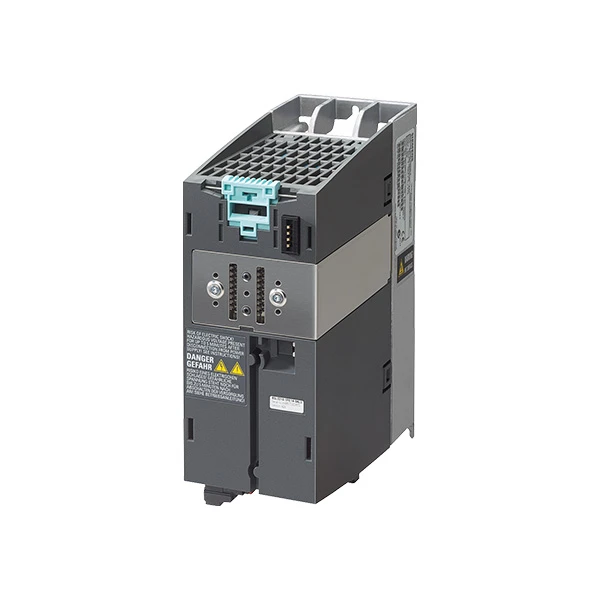

A dependable power module from the SINAMICS G120 series, the Siemens 6SL3210-1PE14-3AL1 is specifically made as a PM240-2 model. It is an essential part of many machines and is frequently used in industrial settings to drive three-phase AC motors.

With a frequency of 47-63 Hz and a 3-phase AC input voltage between 380V and 480V (±10% tolerance), this Siemens 6SL3201-0BE14-3AA0 module operates. It has two output modes: light overload (LO) and high overload (HO). It can manage up to 1.1 kW of power in HO mode, which is ideal for loads with constant torque, such as conveyors. It can reach 1.5 kW in LO mode, making it ideal for variable-torque devices like pumps and fans. It can function at frequencies ranging from 0 to 550 Hz and has a maximum output current of 4.1A, providing flexibility in motor speed control.

Its integrated Class A filter is one of its best features. By lowering electromagnetic interference (EMI), this filter makes sure the module interacts with other electrical devices without interfering. Additionally, it has an integrated brake chopper that aids in rapidly stopping motors when necessary; however, this feature requires an external brake resistor, such as the Siemens 6SL3201-0BE14-3AA0. This power module can be easily integrated into larger systems because it is compatible with Siemens CU240B/E-2 control units (with firmware version ≥V4.6). It is easy to connect to other industrial equipment because it supports widely used communication protocols like Modbus RTU and USS.

Specifications

Model	6SL3210-1PE14-3AL1
Type	PM240-2 Power Module
Voltage range	380-480V AC (±10%)
Frequency range	47-63 Hz
Output frequency range	0-550 Hz
Phase	3-phase
Protection rating	IP20
Dimensions	(W) 73 mm × (H) 196 mm × (D) 165 mm

Precautions

Installation is important first. Due to its IP20 protection rating, the Siemens 6SL3210-1PE14-3AL1 needs to be installed inside a closed control cabinet. This prevents its internal components from being harmed by dust, water splashes, and other debris. To aid in heat dissipation, make sure to mount it vertically. To allow for free airflow, leave at least 20 mm between it and the other devices in the cabinet.

Next, observe the input voltage. The 3-phase AC voltage range for this SINAMICS G120 PM240-2 power module is 380V to 480V (with a tolerance of ±10%). Errors or even damage to the module could result from voltage levels that are too high or too low. If your power source is erratic, use a voltage stabilizer.

Use overload modes with caution. High Overload (HO) and Light Overload (LO) are the two modes available on the Siemens 6SL3210-1PE14-3AL1. It functions best in temperatures between -10°C and 50°C when in HO mode (for loads with constant torque, such as conveyors). Stay between -10°C and 40°C when in LO mode (for variable-torque loads like fans). Overheating and shutdowns may result from exceeding these temperatures.

FAQ

Q: What is the Siemens 6SL3210-1PE14-3AL1?

A: A SINAMICS G120 Power Module, specifically a PM240-2 model, is the Siemens 6SL3210-1PE14-3AL1. It is a crucial part of a modular frequency converter system that regulates three-phase motor speed and torque. This specific module is renowned for having a built-in braking chopper and an integrated Class A filter, which make it a flexible industrial automation solution.

Q: Does the 6SL3210-1PE14-3AL1 include a Control Unit?

A: No, an operator unit and control unit (CU) are not included with the 6SL3210-1PE14-3AL1 power module. To create a full, working variable frequency drive, this power component needs to be combined with an additional Siemens Control Unit (such as a CU2x0x or CU2x5x).

Q: What is the main application of this SINAMICS G120 Power Module?

A: For industrial motor control in a variety of applications, the SINAMICS G120 PM240-2 was created. It is perfect for use in pump, fan, compressor, and conveyor systems in industrial automation environments because of its integrated filter and sturdy design.
