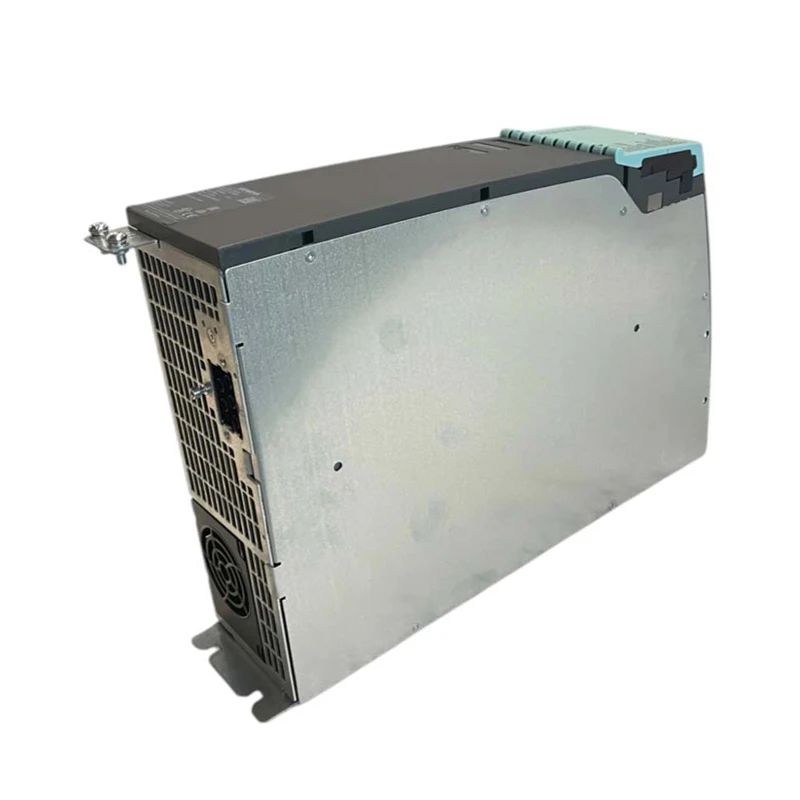

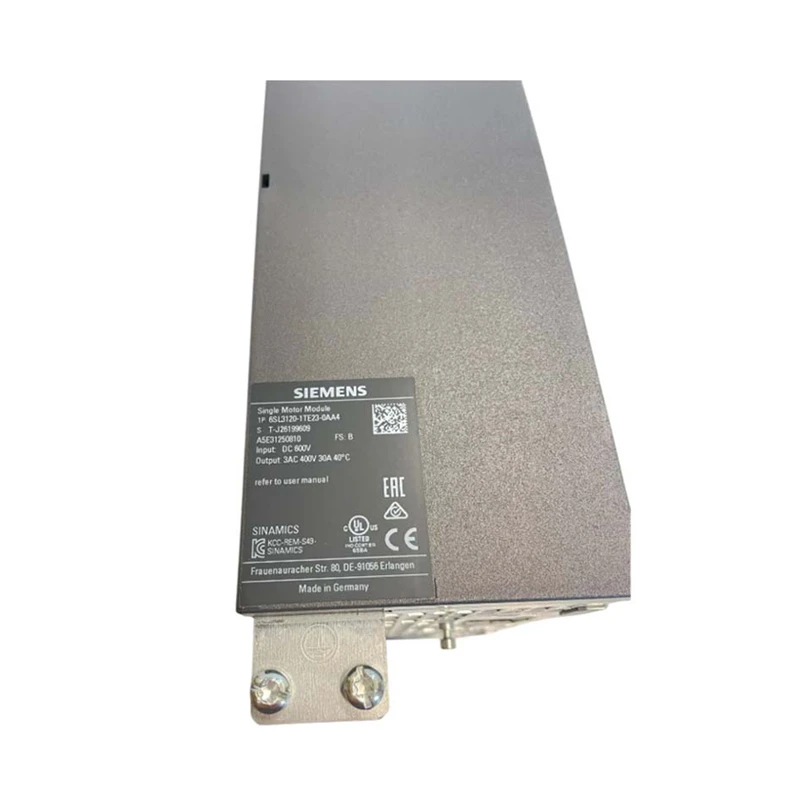

Siemens 6SL3120-1TE23-0AA4
Brand: Siemens
Model: 6SL3120-1TE23-0AA4
Inventory situation: Goods are available in stock.
Product features
The Siemens 6SL3120-1TE23-0AA4 is a high-performance Sinamics S120 single motor module intended for industrial automation and motion control. This small book-sized module transforms DC power (600V DC input) into three-phase AC output (400V AC, 30A) with internal air cooling, ensuring effective heat dissipation in demanding conditions. Its improved pulse patterns and enhanced Safety Integrated functionalities (which meet with SIL 2 and PL D standards) make it perfect for systems that require precision and dependability.
Key parameters include a rated output current of 30A and a peak current capacity of 56A, allowing for dynamic loads in machinery such as conveyor belts, machine tools, and robots. The 6SL3120-1TE23-0AA4 module operates on a DC link voltage range of 510-720V DC, making it compatible with a variety of power sources in manufacturing facilities and automation systems. With a 24V DC power supply for electronics (20.4-28.8V tolerance), it operates steadily under changing conditions.
The 6SL3120-1TE23-0AA4 is designed for a wide range of applications, including automotive manufacturing, textile production, and material handling. Its modular architecture enables for smooth connection with Sinamics S120 systems via DRIVE-CLiQ communication, resulting in customizable multi-axis combinations. Safety features such as Safe Torque Off (STO) and overload prevention improve workplace security, while CE and cULus certification ensures global applicability.
Specifications
|
Product Series |
SINAMICS S120 |
|---|---|
|
DC Link Voltage |
510–720 VDC |
|
Peak Current |
56 A (short-time overload) |
|
Intermittent Load Capacity |
40 A (40% duty cycle) |
|
Certification |
CE, cULus |
|
Cooling Method |
Internal air cooling (built-in fan, airflow 56 m³/h) |
|
Dimensions |
270 mm (W) × 100 mm (H) × 380 mm (D) |
|
Weight |
6.9 kg |
Application scenarios
In manufacturing operations, the 6SL3120-1TE23-0AA4 is commonly used to power conveyor belts and robotic arms. It maintains uninterrupted production flow while reducing downtime by providing steady speed control and smooth acceleration. For example, in packing technology, this drive module allows for accurate movement of package materials, improving the accuracy of labeling and sealing procedures. Its capacity to withstand high torque at low speeds makes it ideal for heavy-duty applications such as lifting and carrying things in warehouses.
The 6SL3120-1TE23-0AA4 is also ideal for machine tool applications such as CNC milling and turning centers. Its advanced vector control and servo control capabilities ensure great dynamic performance and positioning precision. This guarantees that machine tools operate with low vibration and maximum precision, producing high-quality workpiece finishes. Furthermore, the drive module's energy-efficient design reduces power usage, making it an environmentally responsible option for industrial manufacturing.
The 6SL3120-1TE23-0AA4 also finds use in material handling systems, where it regulates crane and elevator motors. Its durable design and dependable performance ensure the safe and efficient transportation of heavy goods. The drive module's connectivity with Siemens automation systems enables straightforward integration into existing networks, as well as real-time monitoring and diagnostics. This capability is especially useful in smart factories, where data-driven insights can improve operational efficiency.
