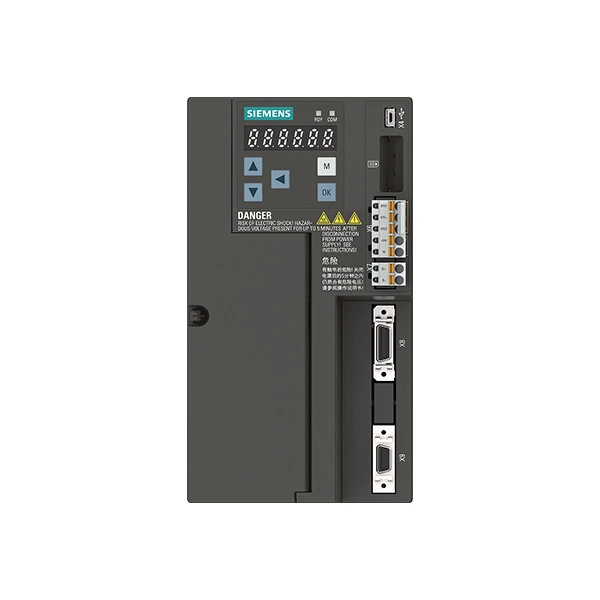

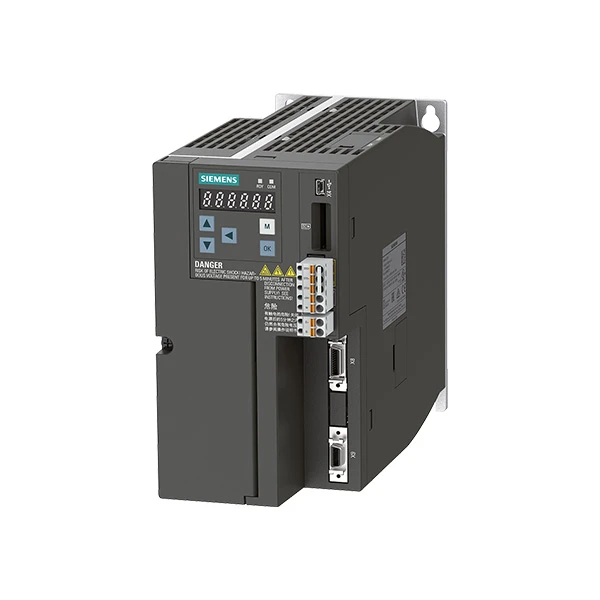

Siemens 6SL3210-5FE11-5UF0

Brand: Siemens
Model: 6SL3210-5FE11-5UF0

Inventory situation: Goods are available in stock.

Product features

A dependable servo drive from Siemens' Sinamics V90 series, the 6SL3210-5FE11-5UF0 is made for industrial automation applications. It is a popular option for many factories because it performs well with small to medium-sized machines that require precise control.

Let's examine its fundamental specifications first. The Siemens 6SL3210-5FE11-5UF0 is designed to work with 1.5 kW or 1.75 kW three-phase AC servo motors, like the Simotics S-1FL6 series. Siemens recommends this combination, so you can be sure it will work. Its rated input current is 6.6 A, and its power input is 380–480 V AC three-phase electricity. It has an output frequency range of 0 to 330 Hz, a rated output current of 5.3 A, and an input voltage range of 0 to 3.3 A, which can be adjusted depending on the load. These figures ensure that it provides consistent power for various machine requirements.

Position control, speed control, and torque control are the three main control modes available on the Siemens 6SL3210-5FE11-5UF0. This indicates that it can manage jobs like position control, which involves moving parts to precise locations, and speed control, which involves maintaining a constant speed for conveyor belts. Additionally, it features an integrated PROFINET interface that facilitates seamless communication with other industrial devices, which is crucial for connecting to factory networks. It also has safety features like STO (Safe Torque Off), which, in the event of an issue, safely cuts the motor's torque. Additionally, it safeguards your machines and the drive from short circuits, overvoltage, undervoltage, and overheating.

Specifications

Model	6SL3210-5FE11-5UF0
Type	Sinamics V90 Servo Drive (with PROFINET interface)
Compatible motor	1.5 kW / 1.75 kW three-phase AC servo motor
Input voltage	380–480 V AC (three-phase)
Input frequency	45–66 Hz
Input current	6.6 A (rated)
Output current	5.3 A (rated)
Communication protocols	PROFINET (integrated), USS, Modbus RTU

Precautions

First, regarding installation, the Siemens 6SL3210-5FE11-5UF0 is rated for IP20 protection. Because it will be damaged by dust or water splashes, it cannot be used outside of a control cabinet. Additionally, because of its small dimensions (100 mm wide by 180 mm tall by 220 mm deep), it requires adequate room; at least 50 mm should be left between the top and bottom of the drive. By aiding in heat dissipation, this gap prevents the Siemens 6SL3210-5FE11-5UF0 from overheating. Its internal components may eventually become loose due to vibrations, so avoid mounting it close to hot surfaces (such as heaters) or in areas with high vibration levels.

Second, for the Siemens 6SL3210-5FE11-5UF0, wiring is essential. Always keep signal cables (for encoders or control signals) and power cables (for L1/L2/L3 main power) at least 10 cm apart. Power cables will produce electromagnetic interference if they are too close together, which will reduce the accuracy of the drive's control. Use copper wire that is at least 4 mm² in diameter for grounding. Short circuits or damage to the drive's safety features, such as the STO (Safe Torque Off) function, can result from improper grounding. Additionally, the Siemens 6SL3210-5FE11-5UF0 is only intended for 380–480V AC three-phase power; never connect it to a single-phase power source.

FAQ

Q: What is the Siemens 6SL3210-5FE11-5UF0, and what is its primary function?

A: Siemens' 6SL3210-5FE11-5UF0 is a SINAMICS G120 PM240-2 power module. Converting incoming fixed-frequency and fixed-voltage AC power into variable-frequency and variable-voltage AC output is its main duty. Standard three-phase asynchronous motors can now have their speed and torque precisely controlled, leading to significant energy savings and improved process control in industrial applications.

Q: What is the main difference between the PM240-2 and other G120 power modules?

A: The regenerative energy capability of the SINAMICS G120 PM240-2 series sets it apart. The PM240-2 can feed a restricted quantity of regenerative energy-produced when a motor is braking-back into the power supply system, in contrast to the basic PM240 series. For applications requiring variable torque, such as fans and pumps, this lowers heat dissipation within the cabinet and increases overall energy efficiency. A key part of this energy-efficient series is the 6SL3210-5FE11-5UF0.

Q: Can I use the 6SL3210-5FE11-5UF0 as a standalone unit?

A: No, it can't function on its own. The power module 6SL3210-5FE11-5UF0 needs to be paired with an independent Control Unit (CU). The intelligence and interfaces for parameterization, commissioning, and communication with higher-level automation systems via PROFIBUS or PROFINET are found in the Control Unit, like the CU250S-2. Maximum flexibility for a range of control and networking requirements is provided by this modular design.
