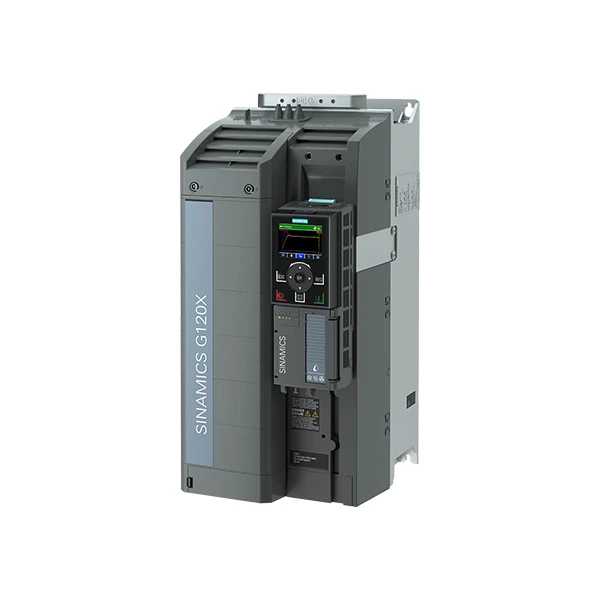

Siemens 6SL3220-2YE20-0UF0

Brand: Siemens
Model: 6SL3220-2YE20-0UF0

Inventory situation: Goods are available in stock.

A top-notch power module from the Siemens SINAMICS G120 series is the Siemens 6SL3220-2YE20-0UF0. It is of the PM240-2 variety, which is intended to regulate the speed of small electric motors in conjunction with SINAMICS G120 control units (CU). Small industrial devices that require reliable and effective motor control, such as conveyor belts, fans, and tiny pumps, frequently use this module.

Siemens 6SL3220-2YE20-0UF0 uses single-phase AC voltage between 200V and 240V for input power (it can tolerate a voltage change of ±10%). It operates in most areas because the input frequency is 50Hz or 60Hz (with a ±5% range). When the input voltage is at its rated level, the maximum input current is 1.8A. With a rated output power of 0.12kW, this module is ideal for small motors. When the ambient temperature is 40°C (a typical factory temperature), the rated output current is 0.55A. It can manage up to 1.65A for two seconds in the event of a brief overload (still at 40°C). The output voltage ranges from 0V to the input voltage (controlled by PWM technology), and the output frequency can go from 0Hz to 600Hz-you can set the basic frequency using the control unit.

You can rely on the quality of Siemens 6SL3220-2YE20-0UF0 because it has passed numerous stringent certifications. It is certified by TÜV Rheinland, UL 508C for the US, CE for the EU, and cUL for Canada. It adheres to EN 61000-6-2 (for immunity to interference) and EN 61800-3 (for industrial environments) for electromagnetic compatibility (EMC). Additionally, it complies with environmental regulations such as REACH (which regulates substances of very high concern) and RoHS 2.0 (which limits harmful substances).

Given that the Siemens 6SL3220-2YE20-0UF0 power module has an IP20 protection rating, the first important safety measure to take is related to installation. Siemens 6SL3220-2YE20-0UF0 must be installed inside a closed control cabinet; it should never be mounted outdoors or in an area where there is a chance of dust, water splashes, or direct sunlight. To maintain the module's temperature within the safe range (-10°C to 40°C for no power derating), the control cabinet should also have adequate ventilation. Make sure the Siemens 6SL3220-2YE20-0UF0 is securely fastened if you install it using screws or a DIN rail (35mm wide, per DIN EN 50022 standard). Since the module can only withstand 1.5g of acceleration while in operation (per IEC 60068-2-6 standard), loose installation may result in vibration damage.

Another important consideration for Siemens 6SL3220-2YE20-0UF0 is electrical safety. Never work on the module while it is energized; always turn off the input power before making any adjustments or connecting cables. Before installing, make sure your input voltage (200–240V single-phase AC) is in line with the module's specifications. The Siemens 6SL3220-2YE20-0UF0's internal components may be burned if a voltage outside of this range is used. Select the appropriate power and motor cables as well. To prevent overheating or short circuits, the cables must be able to manage at least the module's rated output current (0.55A). Uncertified or damaged cables should never be used because they can catch fire.
