As a trusted supplier of Allen - Bradley Variable Frequency Drives (VFDs), I often receive inquiries from customers in the marine industry about the suitability of these drives for their applications. In this blog, I'll delve into the key aspects to help you understand whether Allen - Bradley VFDs can be used in a marine environment.
Understanding the Marine Environment Challenges
The marine environment presents a unique set of challenges that electrical equipment must withstand. High humidity is a constant factor on ships and offshore platforms. Water vapor in the air can condense on the surfaces of electronic components, leading to corrosion and short - circuits over time. Saltwater is another major concern. Sea spray can deposit salt particles on the equipment, which are highly conductive and corrosive. These particles can gradually eat away at the metal parts of the VFD, including the circuit boards, terminals, and enclosures.
In addition to the corrosive elements, the marine environment is also subject to mechanical vibrations. Ships are constantly in motion, and engines, pumps, and other machinery generate vibrations that can potentially loosen connections within the VFD and cause components to fail prematurely. Temperature variations are also significant. The ambient temperature on a ship can range from extremely cold in the Arctic regions to very hot in tropical areas, and the VFD needs to operate reliably across this wide temperature spectrum.
Features of Allen - Bradley VFDs That Address Marine Challenges
Enclosure Design
Allen - Bradley VFDs are available with robust enclosures that provide a high level of protection against environmental factors. For example, some models come with NEMA - rated enclosures. NEMA 4X enclosures, for instance, are designed to be watertight and dust - tight, and they are also resistant to corrosion. This means that they can effectively prevent saltwater and moisture from entering the drive and damaging the internal components. The enclosures are made of high - quality materials that can withstand the harsh marine environment, such as stainless steel or fiberglass - reinforced plastics, which are highly resistant to corrosion.
Corrosion - Resistant Components
The internal components of Allen - Bradley VFDs are also engineered to resist corrosion. The circuit boards are often coated with a protective layer that acts as a barrier against moisture and salt. The terminals and connectors are made of corrosion - resistant metals or are treated with special coatings to prevent oxidation and corrosion. This ensures that the electrical connections remain stable and reliable over time, even in the presence of corrosive elements.
Vibration Resistance
To handle the mechanical vibrations in the marine environment, Allen - Bradley VFDs are designed with sturdy internal construction. The components are securely mounted within the enclosure to minimize the risk of loosening due to vibrations. Additionally, the drives are often tested to meet vibration standards, ensuring that they can withstand the typical vibration levels encountered on ships and offshore platforms.
Temperature Management
Allen - Bradley VFDs are equipped with advanced temperature management systems. They have built - in thermal sensors that monitor the temperature of the internal components. If the temperature exceeds a certain threshold, the drive can adjust its operation to prevent overheating. Some models also have cooling fans or heat sinks that help dissipate heat more efficiently, allowing the drive to operate reliably in high - temperature environments.
Specific Allen - Bradley VFD Models Suitable for Marine Use
Allen - Bradley 25B - D6P0N104
The Allen - Bradley 25B - D6P0N104 is a compact and powerful VFD that is well - suited for marine applications. It comes with a NEMA - rated enclosure that provides excellent protection against moisture and dust. The drive has a wide input voltage range, which makes it adaptable to different power supply conditions on ships. Its advanced control algorithms ensure smooth and efficient motor operation, even in the presence of mechanical vibrations.

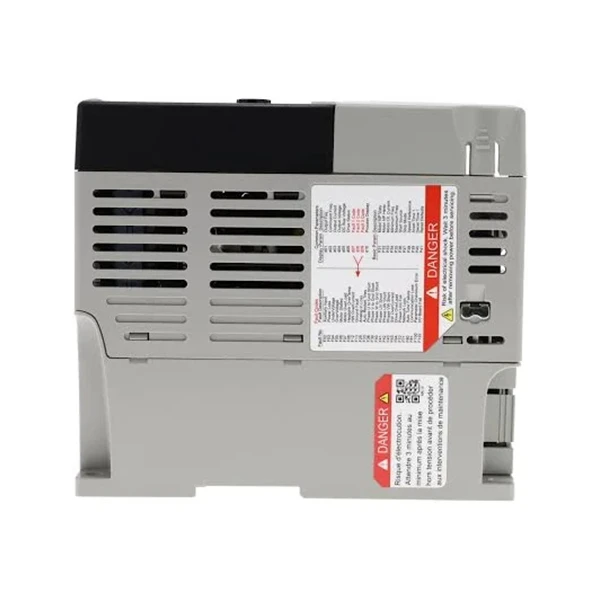

Allen Bradley 22A - D4P0N104
The Allen Bradley 22A - D4P0N104 is another great option for the marine industry. It offers high - performance motor control with precise speed regulation. The drive is designed to be energy - efficient, which is crucial for reducing the overall power consumption on a ship. Its enclosure is designed to be resistant to corrosion, and it has features that help it withstand the temperature variations in the marine environment.
Allen - Bradley 22F - D4P2N103 VFD
The Allen - Bradley 22F - D4P2N103 VFD is a heavy - duty drive that can handle high - power applications in the marine environment. It has a rugged construction and is built to last. The drive is equipped with advanced diagnostic features that allow for easy troubleshooting and maintenance. It also has a high level of protection against electrical faults, which is essential for the safety and reliability of the marine equipment.
Case Studies: Allen - Bradley VFDs in Marine Applications
There have been numerous successful installations of Allen - Bradley VFDs in the marine industry. For example, on a large container ship, Allen - Bradley VFDs were used to control the pumps and fans. The drives were able to operate reliably in the high - humidity and salty environment, and they provided precise speed control, which helped improve the overall energy efficiency of the ship. Another case involved an offshore oil platform, where Allen - Bradley VFDs were installed to control the motors of the drilling equipment. Despite the harsh conditions, including strong vibrations and extreme temperature variations, the drives performed flawlessly, ensuring the continuous operation of the drilling process.
Considerations for Installation and Maintenance in the Marine Environment
Installation
When installing Allen - Bradley VFDs in a marine environment, it is important to follow the manufacturer's guidelines carefully. The drive should be installed in a location that is protected from direct exposure to saltwater and moisture, such as inside a well - ventilated electrical cabinet. The electrical connections should be properly tightened to prevent loosening due to vibrations. It is also advisable to use cable glands that provide a watertight seal to prevent moisture from entering the cables.
Maintenance
Regular maintenance is crucial for the long - term performance of Allen - Bradley VFDs in the marine environment. The enclosures should be inspected regularly for signs of corrosion or damage, and any damaged parts should be replaced immediately. The internal components should be cleaned periodically to remove any salt or dust deposits. The thermal sensors and cooling systems should also be checked to ensure that they are functioning properly.
Conclusion
In conclusion, Allen - Bradley VFDs are well - suited for use in the marine environment. Their robust enclosure design, corrosion - resistant components, vibration resistance, and advanced temperature management systems make them capable of withstanding the harsh marine conditions. Specific models like the Allen - Bradley 25B - D6P0N104, Allen Bradley 22A - D4P0N104, and Allen - Bradley 22F - D4P2N103 VFD have proven their reliability in various marine applications.
If you are in the marine industry and are looking for a high - quality VFD solution, I encourage you to reach out to us for more information. We can provide you with detailed product specifications, technical support, and pricing. Our team of experts is ready to assist you in selecting the right Allen - Bradley VFD for your specific marine application and to ensure a smooth installation and maintenance process. Contact us today to start the procurement and negotiation process.
