Siemens 6AV2124-0QC02-0AX1
Brand: Siemens
Model:6AV2124-0QC02-0AX1
Inventory situation: Goods are available in stock.
Product features

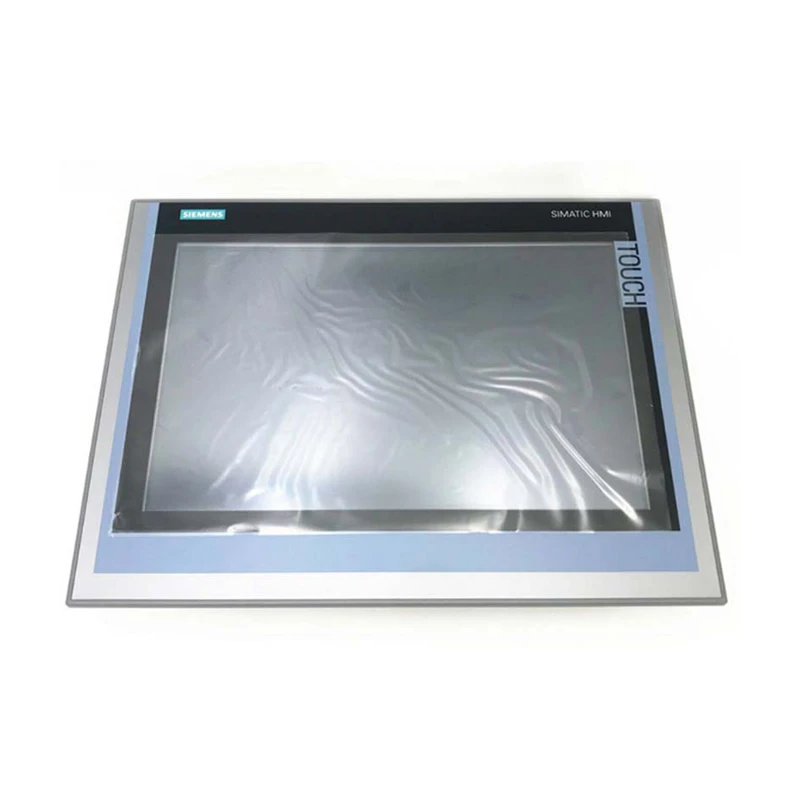

The Siemens 6AV2124-0QC02-0AX1, commonly known as the SIMATIC HMI TP1500 Comfort, is a high-performance HMI built for industrial automation. This tough gadget has a 15.4-inch widescreen TFT display with 16 million colors and a resolution of 1280x800 pixels, which provides clear images for operators in manufacturing, pharmaceuticals, and hazardous areas such as chemical plants. Its touchscreen interface allows for straightforward process control, and the LED illumination offers good visibility even in dimly lit factories.

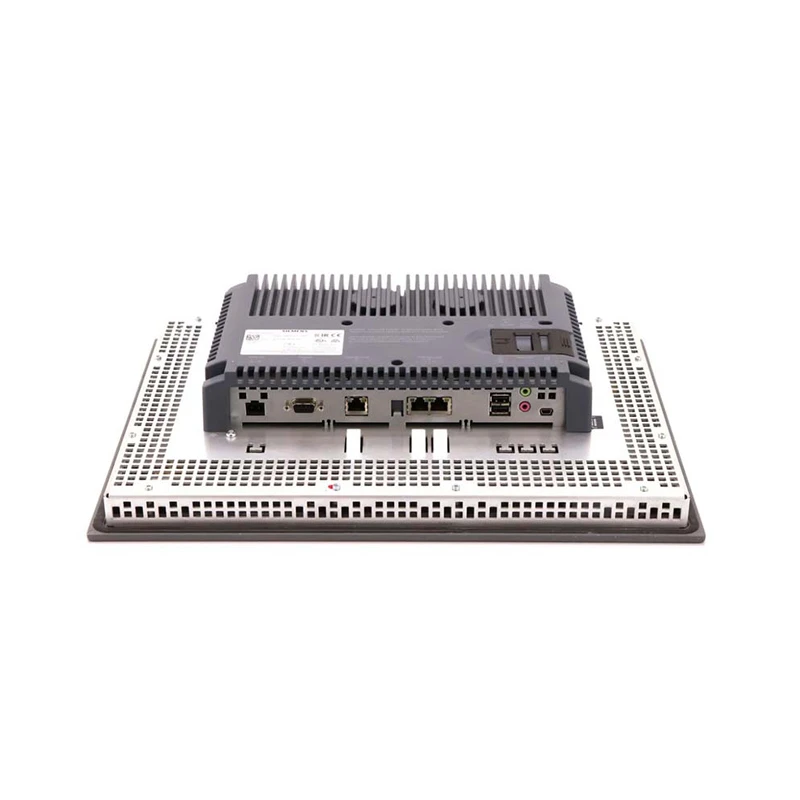

The TP1500 Comfort, with PROFINET and MPI/PROFIBUS DP interfaces, interacts smoothly with Siemens SIMATIC S7 PLCs and other industrial systems, allowing for real-time data exchange at speeds of up to 1.5 Mbps. It also has USB 2.0 ports and an SD card slot for convenient data backup, firmware updates, and peripheral connectivity, such as barcode scanners. The panel runs on a 24V DC supply and consumes only 41W, making it energy-efficient for long-term use.
The TP1500 Comfort is built to last, with an IP65-rated front panel that can withstand dust, water splashes, and chemical cleaning agents, and an IP20-protected back panel for indoor use. It works dependably in temperatures ranging from 0°C to 45°C and can resist vibrations common in production environments. The gadget also fulfills stringent safety standards, such as CE, cULus, and FM clearances, as well as being ATEX Zone 2 and IECEx certified.
Specifications
|
Product Type |
15-inch Wide Screen Touch Panel |
|---|---|
|
Product Series |
SIMATIC HMI TP1500 Comfort |
|
Resolution |
1280×800 pixels |
|
Input Voltage |
24V DC (allowable fluctuation range: 19.2-28.8V DC) |
|
Weight |
approximately 4.7 kg (including mounting bracket) |
|
Operating Temperature |
0°C to 50°C (vertical installation) |
|
Compatible PLC |
S7-1200/1500, SIMOTION, etc. |
|
Panel Dimensions |
415 mm (W) × 310 mm (H) × 75 mm (D) |
Precautions
The Siemens 6AV2124-0QC02-0AX1 is intended for interior use, featuring an IP65-rated front panel that protects against dust and water jets. However, because the rear panel has an IP20 certification, it must be housed in a sealed cabinet to avoid direct contact to moisture or debris. To maintain proper cooling, mount the device vertically or horizontally with a tilt angle of no more than 35 degrees. To avoid electrical dangers, use a 24V DC power supply with safe electrical separation (SELV/PELV standards) and connect it to a grounded system. To prevent movement-related damage, always secure cables using strain relief.
The Siemens 6AV2124-0QC02-0AX1 requires WinCC Comfort V14 SP1 or higher with HSP to be configured. To avoid compatibility difficulties, make sure your PC is running Windows 7/10 and has the latest HSP updates installed. The panel supports MODBUS RTU for third-party devices, although communication should be thoroughly tested prior to broad implementation. To avoid data loss, back up your projects on a regular basis with ProSave software.
Operate the panel at temperatures ranging from 0°C to 50°C (or 55°C with reduced performance) and relative humidity of 90% to avoid condensation. Avoid placing it near heat sources or regions with high vibrations. Consider the outdoor-rated variation (e.g., 6AV2124-0QC13-0AX0). The panel is ATEX-certified for Zone 2 (gas) and Zone 22 (dust) hazardous environments, but keep the rear panel out of a potentially explosive environment.
