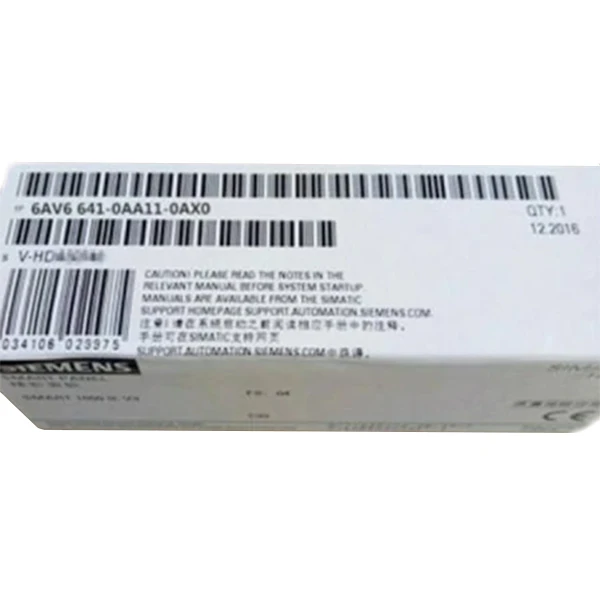

Siemens 6AV6641-0AA11-0AX0 SIMATIC HMI(5)

Brand：Siemens
Model：6AV6641-0AA11-0AX0

Inventory situation: Goods are available in stock.

Product Description

Siemens 6AV6641-0AA11-0AX0;SIMATIC KTP400 Basic Monochrome PN Panel;Siemens KTP400 3-inch Compact Panel;Industrial-grade Monochrome STN Touch Screen 6AV6641;Dedicated Touch Terminal for S7-1200/1500 PLC;HMI with IP65 Protection for Embedded Installation;Ultra-light Industrial Touch Screen

Specifications

Series	SIMATIC HMI Compact Panel Series
Display Screen Size	3 inches
Display Type	STN monochrome display screen
Resolution	480×272 pixels
Contrast Ratio	The typical value is 400	1
Backlight	LED backlight
Brightness	The typical value is 250 cd/m²
Power Supply Voltage	The rated value is 24 V DC, and the allowable range is 19.2 - 28.8 V DC

Product features

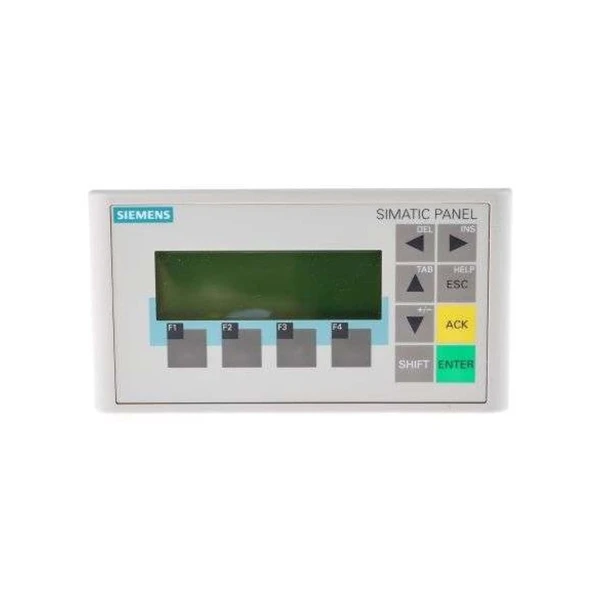

The SIMATIC series includes the Siemens 6AV6641-0AA11-0AX0 type, which is designed specifically as a Human-Machine Interface (HMI) panel. This device interacts with the user via a key interface and features a 3-inch backlit display with clear visual output. The graphics-enabled screen's 160×64 pixel resolution allows for effective information transmission in automation settings.

The 6AV6641-0AA11-0AX0 panel requires a rated voltage supply of 24 VDC, ensuring compatibility with standard automation power sources. Furthermore, its current consumption remains at 350 mA, allowing for optimal energy management during operation.

The front of 6AV6641-0AA11-0AX0 is resistant to various oils, greases and conventional detergents. It also includes an RS 485 interface for connecting the MPI connecting cable or PPI adapter, as well as plug-in terminals for connecting a 24 V DC power supply.

FAQ

Q:Can the power module of the 6AV6641-0AA11-0AX0 be replaced?

A:Yes, the power module of the Siemens 6AV6641-0AA11-0AX0 can usually be replaced. You can follow the maintenance manual to remove the damaged power module and replace it with a new, compatible power module.

Q:What models can be used to replace the power module of the Siemens 6AV6641-0AA11-0AX0?

A:For the Siemens 6AV6641-0AA11-0AX0, compatible replacement power modules include the Siemens 6EP1 series as well as compatible third-party power modules. It is important to ensure compatibility with the 6AV6641-0AA11-0AX0.

Q:Provide some application examples for the Siemens 6AV6641-0AA11-0AX0.

A:In laboratories, numerous automated experimental devices, such as environmental simulation chambers and small automated chemical analyzers, use the Siemens 6AV6641-0AA11-0AX0 for control and monitoring. Researchers can set experimental parameters such as temperature, humidity, and reaction time through this panel, allowing real-time observation of data changes during the experiment and enabling remote operation and control of the experimental equipment. This enhances the accuracy and repeatability of experiments.
