Siemens 6AV6644-0AB01-2AX0 Simatic Mp 377(4)

Brand：Siemens6AV6644-0AB01-2AX0

Inventory situation: Goods are available in stock.

Product Description

Siemens 6AV6644-0AB01-2AX0;SIMATIC MP377 15-inch Touch Screen;Siemens MP377 Multi-Interface HMI Panel;Industrial-grade High-Resolution Touch Screen 6AV6644;Supports VB Script and 32 Languages HMI;Dual Ethernet + RS422/485 Industrial Panel

Related Products

SIEMENS HMI	6AV6644-0AC01-2AX1
	6AV6644-0BA01-2AX1

Product features

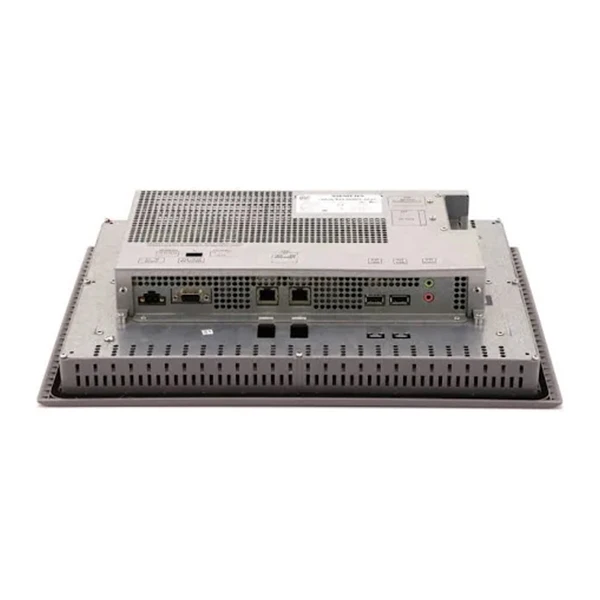

Siemens' type 6AV6644-0AB01-2AX0 is a versatile operator interface for the SIMATIC series. It has a large 15-inch display with TFT technology, providing crisp visuals with a resolution of 1024 x 768 pixels. he interface is capable of rendering 65,536 colors, ensuring vibrant visuals for users.

The 6AV6644-0AB01-2AX0 memory capacity of 12MB, this device can efficiently manage user interfaces and programs. Its integrated cooling system incorporates a built-in fan to sustain performance throughout extended use. The highest inclination angle without requiring external ventilation is 35°, and it is designed for versatility in installation.

The Siemens 6AV6644-0AB01-2AX0 module requires a supply voltage of 24 VDC and has a current draw of 1.9 amps. Its active power consumption is rated at 45.6 watts. The operator interface is conformant to protection class IP65 on the front, which denotes resistance against dust and water ingress.

FAQ

Q:Does the Siemens 6AV6644-0AB01-2AX0 support a customizable interface?

A:Yes, the Siemens 6AV6644-0AB01-2AX0 supports a customizable interface. Users can customize the screen layout, function buttons, display content, and language selection through the relevant configuration software.

Q:Can the 6AV6644-0AB01-2AX0 communicate with other devices?

A:Yes, the 6AV6644-0AB01-2AX0 can communicate with other devices. It is equipped with multiple communication interfaces, including two RJ45 ports, one RS422 port, one RS485 port, and two USB ports.

Q:How many devices can be connected using the Ethernet interface and serial ports of the 6AV6644-0AB01-2AX0?

A:For the Ethernet interface in a PROFINET network, it is generally recommended to connect no more than 127 devices within a single PROFINET subnet. The RS422 interface can connect up to 10 devices, while the RS485 interface can connect up to 32 devices.
