In today's world of factories and machines, making things run smoothly is more important than ever. Imagine a big factory where robots build cars, conveyor belts move boxes, and sensors check if products are good. All these parts need to "talk" to each other and share information quickly. That's where distributed I/O systems come in. They act like messengers, letting different machines and tools share data without being stuck in one place. And when it comes to these systems, SIMATIC ET 200SP is a name you'll hear a lot. Made by Siemens, a leader in industrial technology, SIMATIC ET 200SP is designed to make factories work better-faster, more reliably, and easier to manage. Whether you're new to industrial automation or just want to learn more about how these systems work, this guide will take you through everything you need to know about SIMATIC ET 200SP.
What Is a Distributed I/O System?
A distributed I/O system is a key part of industrial automation. It lets machines and sensors share data without being in the same place. This makes factories and plants work better. For example, in a large factory, sensors on one end of the production line can send information to a control room on the other end without needing a huge bundle of wires. This saves space, reduces costs, and makes it easier to add new machines later. One of the best systems in this field is SIMATIC ET 200SP. Made by Siemens, SIMATIC ET 200SP is known for being reliable and easy to use.
What Is SIMATIC ET 200SP?

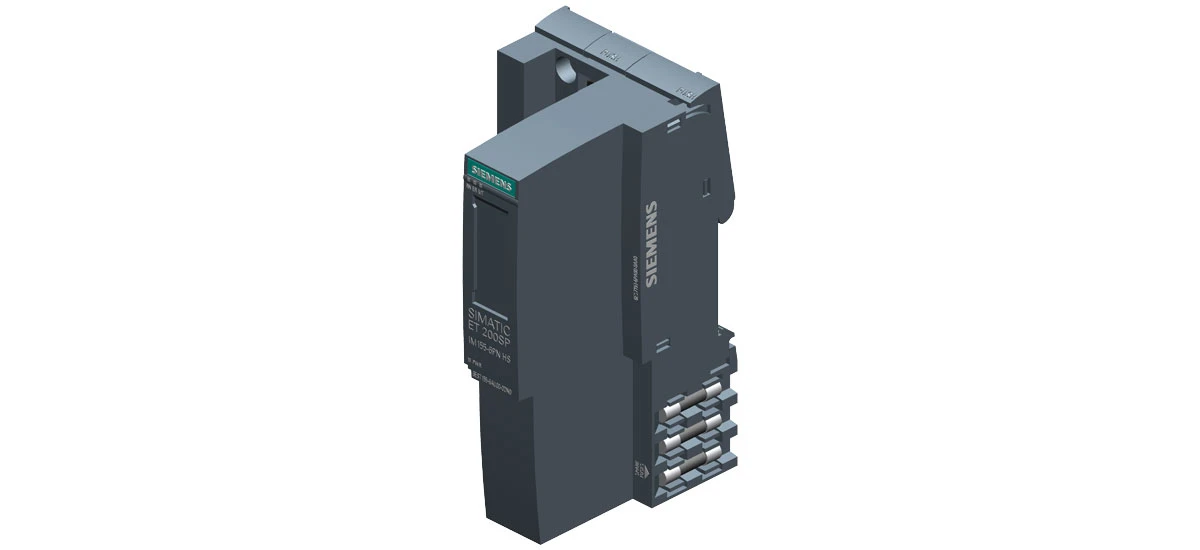

SIMATIC ET 200SP is a distributed I/O system designed for industrial settings. It connects different parts of a machine or production line, like sensors that detect when a box is in place, motors that move conveyor belts, or switches that turn machines on and off, to a central control system. Think of it as a traffic controller for data-it makes sure information flows correctly from where it's collected to where it's needed. This helps in collecting and sending data quickly, making the whole process run smoothly. SIMATIC ET 200SP is popular because it fits many different industrial needs, from small machines in a workshop to big factories with hundreds of tools.
Key Features of SIMATIC ET 200SP
Modular Design
SIMATIC ET 200SP has a modular design. This means it is made of different parts (modules) that can be added or removed easily. You can choose modules for digital inputs (which read signals like "on" or "off" from switches), digital outputs (which send signals to turn machines on or off), analog inputs (which read continuous data like temperature or pressure), or analog outputs (which control things like how fast a motor runs). For example, if your factory starts using new temperature sensors, you can just add an analog input module to your SIMATIC ET 200SP system without replacing the whole setup. This flexibility makes it easy to grow or change your system as your needs change.
Easy to Install and Use
Installing SIMATIC ET 200SP is simple. The modules snap into place on a base unit, and you don't need many tools-just a screwdriver for some parts. Even people with basic technical knowledge can set it up with a little guidance. The system also works with easy-to-use software, like TIA Portal from Siemens, which helps in programming and monitoring. The software has simple menus and step-by-step instructions, so you don't need to be an expert to use it. This makes SIMATIC ET 200SP a great choice for those who want a system that's not hard to handle, saving time and reducing stress during setup.
Reliable Performance
In industrial settings, reliability is very important. A system that stops working can slow down production or even cause accidents. SIMATIC ET 200SP is built to work well even in tough conditions. It can handle dust, vibrations from heavy machines, and temperature changes-from cold warehouses to hot factories. It also has features that protect it from electrical problems, like power surges. This means it won't stop working easily, which helps keep the production line running without interruptions, saving money and keeping workers happy.
Space-Saving
SIMATIC ET 200SP is compact, which means it doesn't take up much space. This is useful in factories where there's not a lot of room for extra equipment. The modules are small and stack neatly, so you can install them in small cabinets or even on the machines themselves. This is perfect for both new factories that want to keep things tidy and old ones that need an upgrade but don't have space for big, bulky systems.
How to Install SIMATIC ET 200SP: A Basic Guide
If you want to set up SIMATIC ET 200SP, here are the simple steps:
- First, plan your system. Think about how many sensors or motors you have and what kind of data they need to send. This will help you choose the right modules. For example, if you have 10 on/off switches, you'll need a digital input module that can handle at least 10 signals.
- Mount the base unit in a safe place, away from water, too much heat, or places where it might get hit by moving parts. Use screws to fix it securely-this prevents vibrations from loosening it.
- Snap the modules into the base unit. Each module has a slot that fits perfectly, and you'll hear a "click" when it's in place. Make sure they fit tightly to avoid connection problems.
- Connect the wires from your sensors and machines to the modules. Each module has clear labels (like "DI 1" for digital input 1) to show where each wire goes. Use a screwdriver to tighten the wire terminals so the wires don't fall out.
- Use the programming software (like TIA Portal) to set up the system. Connect your computer to the SIMATIC ET 200SP with a cable, then follow the software's instructions to tell the system what each module does. For example, you can set it to send an alert if a sensor detects a problem.
- Test the system to make sure everything works. Turn on the power and check if data is flowing correctly. If a sensor isn't sending information, check the wire connection or make sure the module is snapped in right.
This SIMATIC ET 200SP installation guide is just a start, but it shows how easy the process can be-even for beginners.
Applications of SIMATIC ET 200SP
Manufacturing
SIMATIC ET 200SP is widely used in manufacturing. It connects robots, conveyor belts, and quality control sensors. For example, in a car factory, a robot might need to know when a car part is in the right position to start welding. A sensor detects the part and sends a signal through SIMATIC ET 200SP to the robot, telling it to start. It also helps with quality control-sensors check if parts are the right size, and if not, SIMATIC ET 200SP sends a signal to stop the line, preventing bad products from being made. This helps in making sure products are made correctly and quickly.
Logistics
In warehouses, SIMATIC ET 200SP helps with moving goods. It can control conveyor belts so boxes go to the right place-like sorting packages by destination. It also works with barcode scanners to track where each item is. When a scanner reads a barcode, SIMATIC ET 200SP sends that information to a computer, which updates the item's location. This makes storing and shipping goods more efficient, reducing the chance of lost packages and making sure orders are sent out on time.
Food and Beverage Industry
SIMATIC ET 200SP is safe to use in places where food is made. Factories that make snacks or drinks need to be very clean, so equipment must handle washdowns-cleaning with high-pressure water or chemicals. SIMATIC ET 200SP is built with special materials that resist water and chemicals, so it won't get damaged during cleaning. It controls machines that fill bottles with soda, seal packages of chips, or even check if jars are properly closed. This makes sure the process is clean and fast, keeping food safe to eat.
Why Choose SIMATIC ET 200SP Over Other Systems?
Many distributed I/O systems are on the market, but SIMATIC ET 200SP stands out for several reasons. First, it's more flexible than some systems because you can change the modules easily. If your factory starts making a new product, you don't need to buy a whole new system-just add a few modules. Second, it's more reliable, which means less downtime. When machines don't stop working unexpectedly, production stays on track. Third, it works with other Siemens products, like PLCs (Programmable Logic Controllers), which are like the "brains" of the factory. This seamless connection makes the whole automation system work better together, reducing problems and making it easier to manage.
If you're thinking about how to configure SIMATIC ET 200SP with other devices, you'll be happy to know it's designed to connect smoothly. The software makes it easy to link it to PLCs, computers, or even other distributed I/O systems. This saves time and reduces problems when setting up your industrial system.
Maintenance Tips for SIMATIC ET 200SP
To keep your SIMATIC ET 200SP working well, do regular checks. Here are some simple tips:
- Clean the modules to remove dust. Dust can block connections and cause problems. Use a soft brush or a can of compressed air to gently clean them.
- Check the wires to make sure they're not loose. Over time, vibrations can loosen terminals, so tighten them with a screwdriver if needed.
- Keep an eye on the temperature. Make sure the area around the system isn't too hot-if it is, add a fan or move the system to a cooler spot.
- If a module stops working, you can replace it quickly without shutting down the whole system. Just snap out the old module and snap in a new one. This easy replacement saves time and keeps production running.
This easy maintenance is another reason why SIMATIC ET 200SP is a top choice for many factories.
Conclusion
SIMATIC ET 200SP is a great distributed I/O system for any industrial setting. Its modular design, easy installation, reliability, and wide range of applications make it a smart choice. Whether you're running a small workshop or a big factory, SIMATIC ET 200SP can help make your operations more efficient-saving time, reducing costs, and making work easier for everyone. If you need a system that's easy to use and trust, SIMATIC ET 200SP is the way to go.
