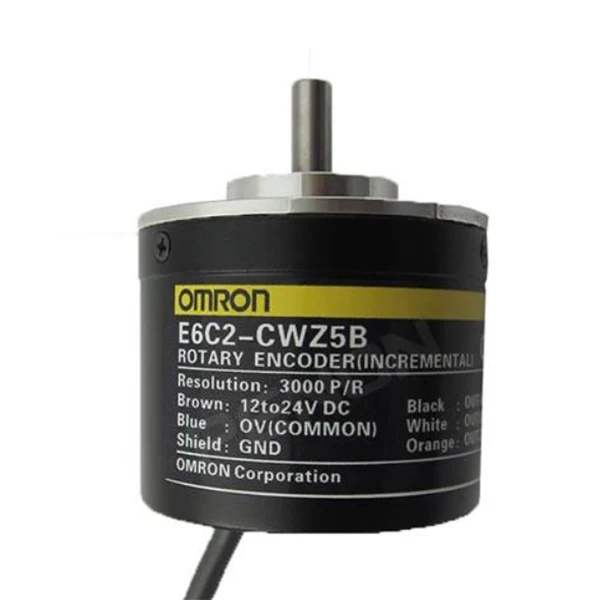

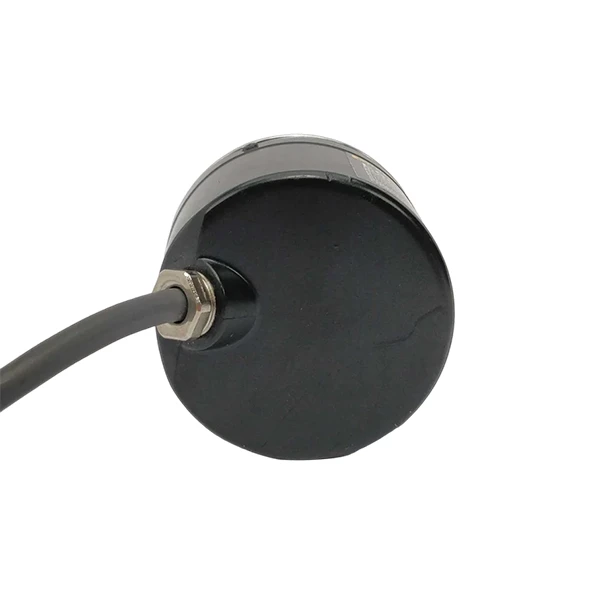

Omron E6C2-CWZ5B
Brand: Omron
Model: E6C2-CWZ5B
Inventory situation: Goods are available in stock.
Product features
The Omron E6C2-CWZ5B is a high-quality rotary encoder manufactured by Omron, a well-known brand with decades of expertise making dependable industrial electronic components. A rotary encoder, such as the Omron E6C2-CWZ5B, converts rotational motion into electrical impulses. These signals assist machines and gadgets in obtaining accurate information regarding speed, location, and direction, which is critical for ensuring that equipment operates precisely. Because of Omron's extensive experience testing and upgrading industrial components, the E6C2-CWZ5B is designed to satisfy the demands of real-world use.
The Omron E6C2-CWZ5B offers realistic parameters that make it suitable for a variety of industries. It has a resolution of up to 1000 pulses per rotation (ppr), allowing it to catch small, detailed changes in motion-ideal for equipment requiring precise control, such as conveyor belts or small robots. It operates within a typical voltage range of DC 5V to 24V, making it compatible with the majority of industrial power systems. It also has a compact shape, allowing it to fit into tight locations within machines, and its sturdy body can withstand minor vibrations (common in factories) without losing accuracy. It is also straightforward to install, as it comes with standard mounting pieces that fit many existing machine setups.
The Omron E6C2-CWZ5B excels in real-world applications because of its dependability and performance. It is commonly used in CNC machines (to manage tool locations), packaging equipment (to maintain product alignment), and robotic arms (to move precisely). It operates consistently even in shifting temperatures (from -10°C to 60°C), which is critical for companies with varied conditions. Omron tests every E6C2-CWZ5B for quality, so users can rely on it to work day after day without needing regular repairs. For corporations or hobbyists looking for a dependable rotary encoder, the Omron E6C2-CWZ5B is an excellent choice since it combines Omron's experience with features that tackle real-world industrial challenges.
Specifications
|
Power supply voltage |
12–24 V DC (-10% to +15%, ripple ≤ 5%) |
|---|---|
|
Current consumption |
≤ 100 mA |
|
Response frequency |
50 kHz |
|
Resolution |
2000 pulses per revolution (P/R) |
|
Shaft diameter |
6 mm (D-type flat shaft) |
|
Maximum speed |
6000 rpm |
|
Shaft load |
Radial 50 N, Axial 30 N |
|
Connection type |
Pre-wired (2 m oil-resistant PVC cable) |
Application scenarios
CNC machine tools are one of the Omron E6C2-CWZ5B's most important applications. CNC machines are used to precisely cut or shape metal objects (such as automotive parts or electronic components). The Omron E6C2-CWZ5B allows these machines to precisely track the position of their cutting instruments. For example, when a CNC machine drills a small hole in a metal item, the encoder sends signals to the machine to stop the tool at the appropriate depth. This ensures that every part is created in the same way, with no errors. Car parts factories frequently utilize the Omron E6C2-CWZ5B in their CNC machines to ensure exact production results.
In addition, the Omron E6C2-CWZ5B is commonly used on factory conveyor belts. Conveyor belts transport things (such as boxes, bottles, and food packages) from one location to another. The Omron E6C2-CWZ5B measures how rapidly the belt moves. If the belt moves too quickly, products may fall off; if it moves too slowly, the production line slows down. The encoder gives data to the belt's control system, which adjusts the speed. This keeps the line operating smoothly, which is what snack companies and bottle-making operations rely on every day.
FAQ
