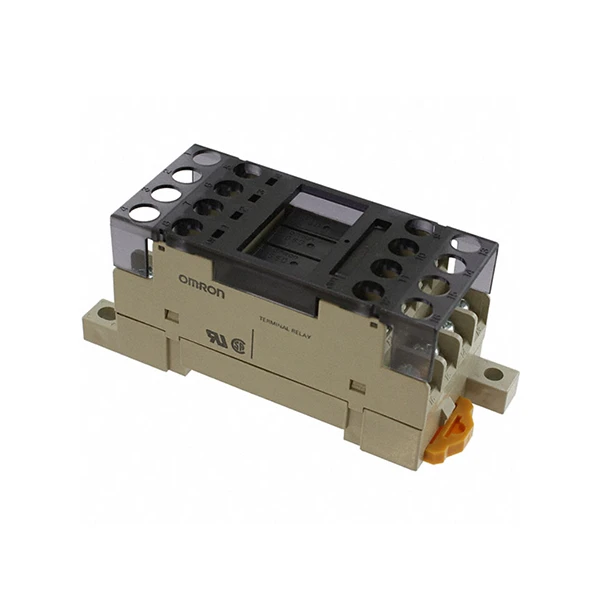

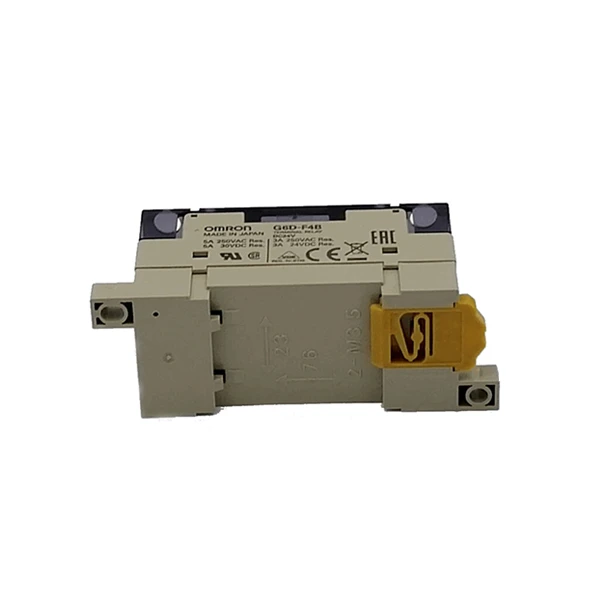

Omron G6D-F4B

Brand: Omron
Model: G6D-F4B

Inventory situation: Goods are available in stock.

Product features

Omron G6D-F4B is a dependable signal relay manufactured by Omron, a well-known brand with extensive experience in the production of long-lasting electronic components. Its primary characteristics include a compact tiny size (ideal for tight locations in devices), a 4-pin design (simple to install and replace), and compatibility with common low voltages such as 12V DC and 24V DC, making it suited for a wide range of electronic systems, from industrial machinery to residential appliances. This relay is intended to assist correct signal sending and switching, which is a basic requirement for devices to function effectively.

The Omron G6D-F4B offers numerous practical advantages. It consumes less power, which helps to save energy and prevents the devices it powers from wasting electricity. It also provides rapid and consistent signal switching, even after prolonged use, ensuring dependable performance for devices such as factory sensor modules or smart home appliances. Furthermore, Omron subjected the G6D-F4B to stringent quality checks, including testing its performance in various temperatures and durability over time, ensuring that it is a long-lasting choice.

Whether for industrial control systems, home appliances, or tiny electronic equipment, the Omron G6D-F4B stands out for its usable parameters and significant benefits. Its tiny size and user-friendly design address space and installation issues, while its low power consumption and consistent performance suit practical requirements. With Omron's known brand reputation and the relay's own quality, it is a popular choice for anyone looking for a dependable signal relay.

Specifications

Rated voltage	DC 12 V or DC 24 V
Maximum allowable voltage	130% of rated voltage (not for continuous use)
Rated load	AC 250 V 3 A or DC 30 V 3 A (resistive load)
Contact form	1 A×4 (SPDT / Single-Pole Double-Throw with independent contacts)
Weight	approximately 65 g
Mechanical life	≥ 20 million cycles (switching frequency 18,000 cycles/hour)
Terminal type	screw terminal block
Rated current	DC 12 V: 18.7 mA, DC 24 V: 10.5 mA (coil temperature +23°C, value with ±20% tolerance)

Precautions

First and foremost, always thoroughly inspect the Omron G6D-F4B relay before use. Do not use the relay if the case has cracks, loose pieces, or any other damage. This can prevent the Omron G6D-F4B from functioning properly and may pose a safety risk. You should also read the Omron G6D-F4B user handbook first; it will tell you the correct voltage and current for the relay.

Then, consider where you'll place the Omron G6D-F4B. Do not place it in areas that are too hot (above 40°C) or wet (over 85% humidity with no water drops). Dust, oil, or harsh chemicals near the Omron G6D-F4B can damage its internal components. This will reduce the Omron G6D-F4B's performance over time.

Next, before connecting wires to the Omron G6D-F4B, switch off the power. Never touch the relay's terminals while the power is on; this can result in an electric shock. Use wires that will fit the Omron G6D-F4B terminals. Wires that are too thin or too thick will not connect properly, resulting in poor contact for the relay.

FAQ

Q: What is the Omron G6D-F4B?

A: The Omron G6D-F4B is a compact terminal relay with four outputs for industrial control systems. It's part of Omron's larger relay family, which is noted for its dependability in automation applications. This model is a screw terminal type (compared to the Push-In Plus form, G6D-F4PU) and is often used for interface and signal amplification between controllers like PLCs and output devices.

Q: What types of loads can the G6D-F4B switch?

A: The G6D-F4B is intended for general-purpose switching of resistive loads such as solenoids, tiny heaters, and indicators at up to 3 amps. It is also capable of handling inductive loads (such as small relays or contactor coils), but protection circuits may be required. Always refer to the datasheet for detailed load characteristics and derating directions.

Q: Can the G6D-F4B be used for PLC output interfacing?

A: Absolutely. The principal application is PLC output interface. It serves as an intermediary, allowing the PLC's low-power output module to control higher-power loads (such as motors via contactors, lamps, or heaters) in an isolated and safe manner, thereby isolating the PLC from potential electrical noise or voltage surges on the load side.

Q: Is the Omron G6D-F4B RoHS compliant?

A: Yes, according to the search results, the G6D-F4B DC24 is RoHS compliant (Restriction of Hazardous Substances)2, which means it follows directives that restrict the use of certain hazardous compounds in electrical and electronic equipment.
