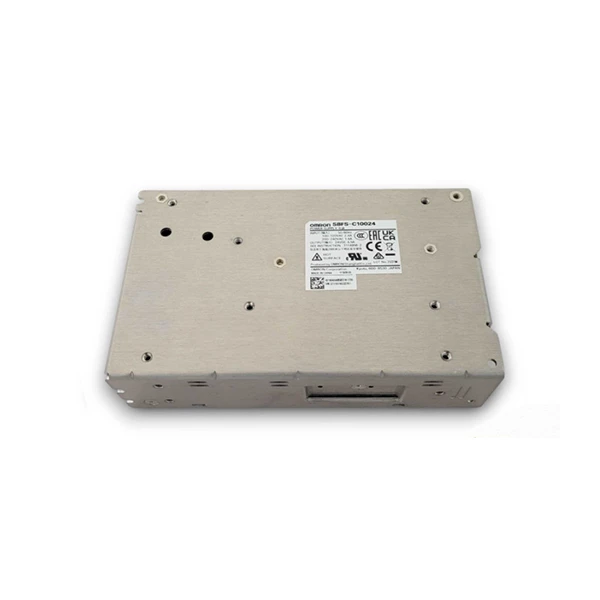

Omron S8FS-C10024

Brand: Omron
Model: S8FS-C10024

Inventory situation: Feel free to consult us for free!

Product features

The Omron S8FS-C10024 is a reliable and efficient switching power supply made for use in businesses and factories. With a 24V DC output at 4.5A, this small device can provide 100W of constant power to meet the needs of many different applications. Its wide input voltage range (AC 85–132V / 176–264V or DC 248–373V) makes it easy to adapt to different power sources, making it useful for use around the world.The S8FS-C10024 is known for being very efficient, with an efficiency of up to 87%. This means it uses less energy and costs less to run. Its tough design includes built-in protections against overcurrent, overvoltage, and short circuits, so it will work reliably for a long time, even in tough conditions.The machine also includes surge protection against lightning and unexpected voltage spikes, making it ideal for places with unpredictable power supplies.

The Omron S8FS-C10024 power supply is compact and durable, measuring 38 x 97 x 159 mm. It can withstand shocks and vibrations up to 150 m/s². It performs effectively in temperatures ranging from -20°C to +60°C and lasts for more than 10 years. The green LED clearly indicates the output condition, and the ability to mount it on a DIN rail (with additional brackets) makes it simple to use in control panels.The S8FS-C10024 has CE, UL, and CCC certifications, indicating that it meets stringent safety and quality requirements for usage in industry, medicine, and automation. It is commonly used in robotics, factory automation, and tools that require constant power at 24 volts.This power supply provides steady performance and little noise for powering sensors, PLCs, or tiny motors (120mVp-p ripple).

Specifications

Product series	S8FS-C
Output voltage	24 V DC (adjustable ±10%)
Output current	4.5 A (rated load)
Ripple & noise	≤ 80 mVp-p (AC 100–240 V input)
Operating temperature	-20 to +60°C
Safety certifications	UL, CE, CCC
Vibration resistance	10–55 Hz, 0.375 mm peak-to-peak displacement (3 directions, 2 hours each)
Dimensions	97 mm (W) × 38 mm (H) × 159 mm (D)

Application scenarios

In factories and manufacturing plants, the Omron S8FS-C10024 powers PLC control cabinets, sensors, and robotic systems. Its high conversion efficiency (up to 87% typ.) ensures minimal energy loss, and the wide input voltage range (AC 85-264V) allows for fluctuating power sources. Overload, short circuit, and overvoltage protection devices are built into the equipment to safeguard it from voltage spikes or current surges. The compact design and DIN rail mounting capability enable convenient installation in restricted spaces, such as control panels, reducing setup time and costs.

The S8FS-C10024 is suited for medical applications such as patient monitoring and laboratory instruments because it delivers steady power with low noise and high reliability. Its compliance with international safety standards (UL 60950-1, CE) ensures safe operation in sensitive conditions. The power supply's extended lifespan (10 years minimum) and robust design make it suited for continuous use in hospitals and research facilities.

The S8FS-C10024 powers critical infrastructure in high-speed train stations and subway systems, including ticket machines, surveillance cameras, and signalling systems. When used with the C35024 module, it provides redundant power backup, ensuring no downtime even if one unit fails. This is vital for maintaining smooth operations in transportation hubs where dependability is essential.

FAQ

Q: What are the key specifications of the Omron S8FS-C10024?

A: The Omron S8FS-C10024 is a high-quality switching power supply designed for industrial applications. It generates 100W of electricity at a constant 24V DC output voltage and 4.5A rated current. Its wide input voltage range, which supports 85-264V AC or 248-373V DC, makes it suitable for global use. The gadget is 87% efficient at 200V AC input, which saves energy, and it has built-in overvoltage, overload, and short circuit protection. Its compact size (38 x 97 x 159 mm) and DIN rail mounting capability (with optional brackets such as S82Y-FSC150 DIN) make it ideal for space-constrained industrial applications.

Q: What applications is the Omron S8FS-C10024 best suited for?

A: This power supply is perfect for industrial automation, machine tools, semiconductor manufacturing equipment, and general-purpose industrial systems that require continuous 24V DC power. Its robust design and operational temperature range of -20°C to +60°C make it ideal for harsh environments. Common uses include powering PLCs, sensors, actuators, and control panels. For higher power requirements, consider the S8FS-C series' 150W and 200W models.
