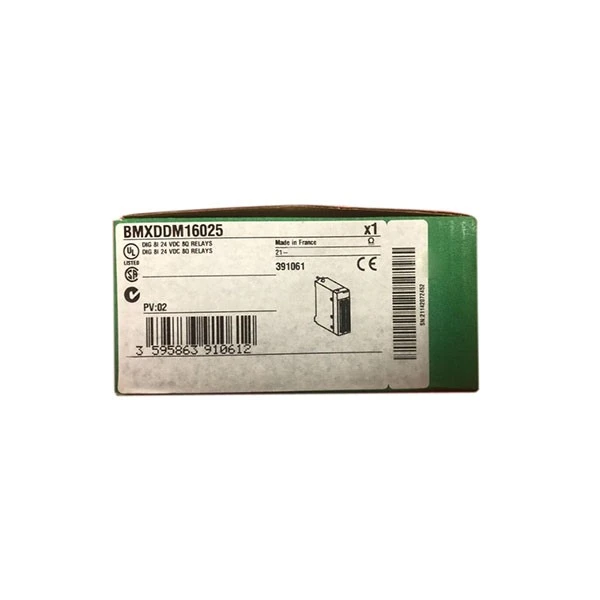

Schneider BMXDDM16025

Brand: Schneider
Model: BMXDDM16025

Inventory situation: Goods are available in stock.

Product features

Schneider BMXDDM16025 is a high-quality discrete mixed I/O module created and manufactured by Schneider Electric, a well-known brand in industrial automation. It is part of the Modicon X80 product series, which includes a single platform module that is interoperable with the Modicon M340 and M580 Programmable Automation Controllers.

The Schneider BMXDDM16025 is a discrete mixed I/O module having eight input channels and eight relay output channels, which is one of its most notable features. Schneider BMXDDM16025's input channels use 24V DC positive voltage and can operate reliably in a voltage range of 19 to 30VDC. Each input channel has a rated current of 3.5 mA and an input impedance of 6800 ohms, making it compatible with 2-wire or 3-wire proximity sensors that meet the IEC 60947-5-2 and IEC 61131-2 type 3 standards. This makes the Schneider BMXDDM16025 extremely adaptable in industrial applications, since it can be simply connected to a variety of sensors to capture on-site data.

The Schneider BMXDDM16025 has 8 relay output channels with positive logic. These output channels have a wide voltage range and can be used with power supplies ranging from 19 to 30V DC and 19 to 264V AC (nominal 24-240V AC). Each output channel can deliver a rated current of 2A, which is sufficient to power most industrial actuators and equipment. The Schneider BMXDDM16025 relay outputs feature a quick response time: activation is no more than 10 milliseconds, and deactivation is no more than 8 milliseconds, guaranteeing that the equipment responds promptly to control signals.

Specifications

Model	BMXDDM16025
Series	Modicon X80
Module Type	Discrete Mixed I/O Module
Protection Rating	IP20
Number of Input Channels	8 channels
Number of Output Channels	8 channels
Rated Input Current	3.5 mA
Operating Temperature	0~60°C

Application scenarios

Manufacturing facilities are one of Schneider BMXDDM16025's most typical application scenarios. Schneider BMXDDM16025 collects signals from numerous on-site sensors in automated production lines such as automotive assembly lines, electronic product assembly lines, and machinery processing lines. It can link 2-wire or 3-wire proximity sensors to detect workpiece position, fixture status, and the opening and closing of safety doors in real time. Simultaneously, Schneider BMXDDM16025's relay output channels may operate actuators such as solenoid valves, indicator lights, and tiny motors, ensuring that each stage of the production line goes smoothly. Schneider BMXDDM16025's fast response time and high reliability help factories improve production efficiency and reduce the probability of production errors.

Schneider BMXDDM16025 is also utilized extensively in the energy sector, particularly in power plants and substations. To provide a secure and steady power supply, the running state of diverse electrical equipment must be monitored in real time. Schneider BMXDDM16025 may connect to circuit breakers' auxiliary contacts, isolating switch position sensors and temperature sensors to collect data such as equipment operating temperature and switch status. Its wide input voltage range (19-30V DC) makes it compatible with sensors from various manufacturers, preventing signal loss due to voltage mismatch. The Schneider BMXDDM16025's steady performance allows workers to identify equipment defects quickly and reduce fault handling time.

FAQ

Q: What is the Schneider Electric BMXDDM16025, and what is its primary function?

A: The Schneider Electric BMXDDM16025 is a 16-channel digital input module from the Modicon M340 family. Its principal role is to communicate with field devices such as sensors (e.g., proximity and photoelectric), push buttons, and switches. It turns their on/off status (24V DC signals) into logic levels that the PLC processor can read, acting as an essential discrete input module for industrial automation systems.

Q: What standards, certifications, and environmental ratings does it hold?

A: The BMXDDM16025 is intended for industrial use and meets essential international standards like CE, UL, cULus, and ATEX for certain hazardous sites (models with suitable suffix). It normally has an IP20 ingress protection rating, indicating that it is protected against solid objects larger than 12.5 mm but not against water. It is suitable for use in temperatures ranging from 0°C to 60°C.

Q: How do I configure and diagnose the BMXDDM16025 module?

A: The module is completely customized using Schneider Electric's Unity Pro software (or the newer EcoStruxure Control Expert). No hardware configuration is required. When scanning the PLC configuration, the software immediately recognizes the module. Users can set parameters like input filtering time to reduce contact bounce and electrical noise. Diagnostic information is supplied via the software and the module's status LED.
