Schneider BMXDDO6402K

Brand: Schneider
Model: BMXDDO6402K

Inventory situation: Goods are available in stock.

Product features

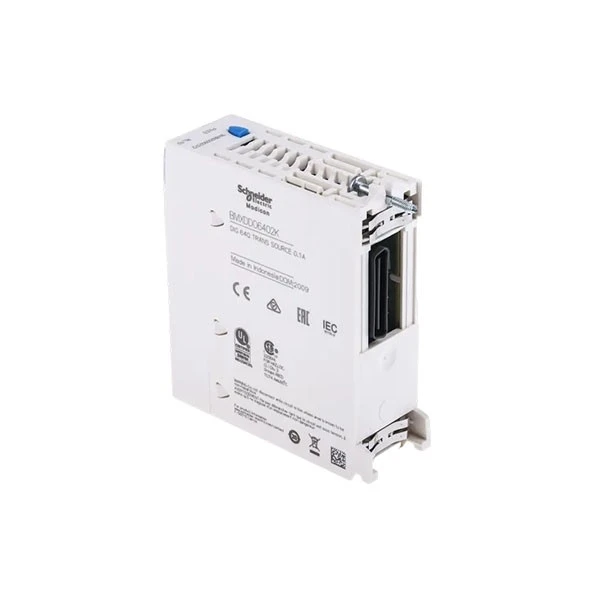

The Schneider BMXDDO6402K is a top-tier discrete output module from Schneider Electric's Modicon X80 line. It is specifically built for high-performance industrial automation applications, making it a dependable solution for manufacturing facilities and industrial projects. The Schneider BMXDDO6402K, a core product in the Modicon X80 family, provides practical features and reliable performance to fulfill the needs of modern industrial control systems.

The Schneider BMXDDO6402K has 64 solid-state (transistor) positive logic output channels, which is one of its most important features. This means it can control 64 separate devices at once, including small motors, lights, and sensors in an automation system. The Schneider BMXDDO6402K can give a maximum current of 0.1 A per channel, with a total maximum current of 6.4 A for the module as a whole, which is sufficient for the majority of industrial control activities.

The Schneider BMXDDO6402K works with Modicon's M580 and M340 PAC systems, as well as Quantum Ethernet I/O. This interoperability allows you to easily connect to existing industrial control systems, eliminating the need to change all of your equipment in order to use this module. It runs at a rated voltage of 24 V DC and a working range of 19 to 30 V DC, ensuring stable operation under a variety of power supply situations.

In terms of performance, the Schneider BMXDDO6402K offers a 1.2 ms output reaction time, allowing it to respond swiftly to control inputs and improve the efficiency of your automated system. It also has a lengthy average time between failures (MTBF) of 159,924 hours, indicating that it is extremely durable and can function for an extended period of time without failing.

Specifications

Model	BMXDDO6402K
Product Series	Modicon X80 Discrete Output Module
Number of Output Channels	Number of Output Channels
Connectors	2 x 40-pin connectors
Rated Output Voltage	24 V DC
Single Channel Output Current	0.1 A
Maximum Tungsten Load	1.2 W
Power Consumption	6.85 W

Application scenarios

One of the Schneider BMXDDO6402K's primary application situations is the manufacturing industry. The Schneider BMXDDO6402K is widely used in assembly lines and production systems in automobile, food processing, and packaging companies. It may manage small motors, conveyors, indicator lights, and sensors on the factory floor, ensuring that every stage of the manufacturing process goes smoothly. For example, in a packaging facility, the Schneider BMXDDO6402K may handle 64 distinct packaging machines at the same time, increasing packaging efficiency and lowering manual errors. This makes the Schneider BMXDDO6402K an attractive option for production automation.

The Schneider BMXDDO6402K is also used extensively in material handling and logistics systems. It regulates actuators, conveyor belts, and sorting equipment in warehouses and logistics centers, allowing goods to be moved swiftly and accurately. Its 64 output channels enable it to operate several logistics devices simultaneously, which is extremely beneficial in large-scale warehouses with significant workloads. The Schneider BMXDDO6402K's short response time (1.2 ms) ensures that it can respond swiftly to control signals, allowing logistics systems to operate more efficiently. This is why many logistics organizations prefer the Schneider BMXDDO6402K for their automation requirements.

FAQ

Q: What is the Schneider Electric BMXDDO6402K, and what is its main purpose?

A: The Schneider Electric BMXDDO6402K is a high-density discrete output module (also known as a digital output module) for Modicon X80 platforms. Its principal function is to serve as an interface between a programmable logic controller (PLC), such as the Modicon M340 or M580, and field devices. It accepts low-voltage PLC control signals and converts them to higher power (24V DC) to activate loads in industrial automation systems such as solenoid valves, indicator lights, relays, and tiny motors.

Q: Which Schneider PLC systems is the BMXDDO6402K compatible with?

A: The BMXDDO6402K is part of the Modicon X80 I/O system, a unified platform that allows for smooth integration. It is fully compatible with Modicon M340 PLCs and M580 PACs. This shared platform saves spare part inventories and training costs across multiple controller families.

Q: Where can I find technical documentation and support for the BMXDDO6402K?

A: The Schneider Electric "Modicon X80 - Discrete Input/Output Modules" hardware guide should always be used for complete wiring diagrams, specs, and safety recommendations. For configuration and programming, go to the manuals for your PLC (e.g., Modicon M340) and engineering software (e.g., EcoStruxure™ Control Expert).
