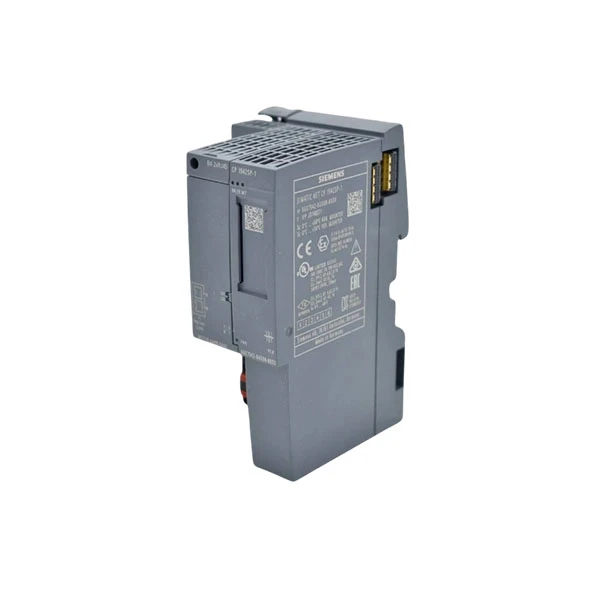

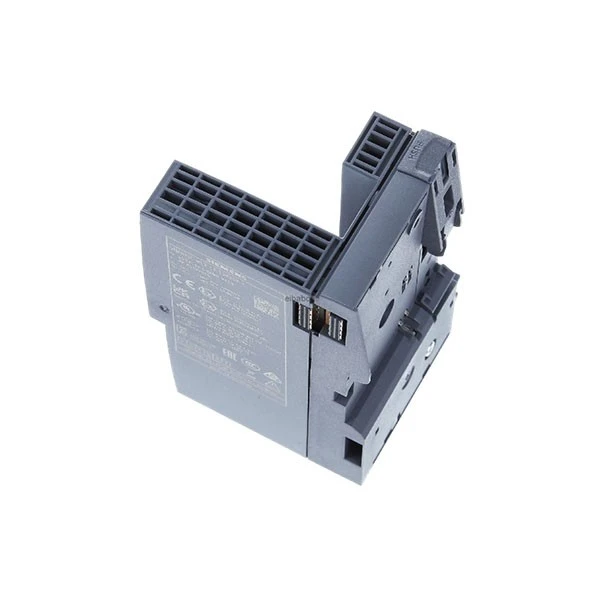

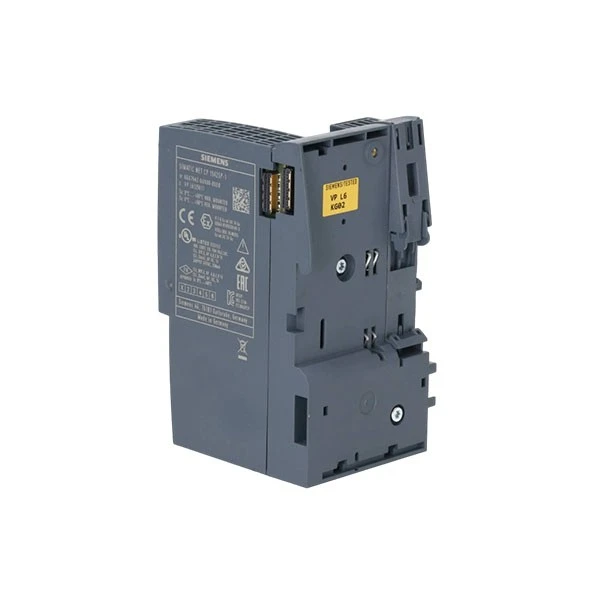

Siemens 6GK7542-6UX00-0XE0

Brand: Siemens
Model: 6GK7542-6UX00-0XE0

Inventory situation: Goods are available in stock.

Product features

Siemens 6DL1132-6BL00-0PH1 is a high-quality digital output module manufactured by Siemens, a well-known brand in industrial automation. It is part of the Siemens SIMATIC ET 200SP HA family, which is intended specifically for high-availability industrial automation systems. The Siemens 6DL1132-6BL00-0PH1 features 32 digital output channels, each of which can accommodate a 24VDC voltage and a 0.5A current load. This makes it useful for managing a wide range of standard industrial equipment, including relays, contactors, and indicator lights. The module is compatible with H1 and N0 terminal blocks, allowing it to be easily connected into various industrial wiring systems. It also features a unique color code, CC00, which allows workers to rapidly identify and install it, decreasing installation time and errors.

The Siemens 6DL1132-6BL00-0PH1 has an important feature called advanced channel diagnosis. This function can detect module flaws early on, allowing personnel to find and repair problems in a timely manner. This reduces system downtime while also improving the overall stability of the industrial automation system. Furthermore, the Siemens 6DL1132-6BL00-0PH1 features several protection functions, such as reverse polarity protection, short-circuit protection, and overload protection, which may effectively protect the module and the associated equipment from damage.

The Siemens 6DL1132-6BL00-0PH1 is made in Germany and complies with the RoHS directive and other international safety requirements, ensuring both high quality and environmental friendliness. It has a net weight of 0.3kg and can operate consistently in a voltage range of 19.2VDC to 28.8VDC, making it suitable for a variety of industrial situations. For industrial users that require a dependable 32-channel digital output module, the Siemens 6DL1132-6BL00-0PH1 ET 200SP HA module is an excellent option. It offers consistent performance, simple operation, and high compatibility, allowing customers to increase job efficiency and save maintenance expenses.

Specifications

Model	6GK7542-6UX00-0XE0
Product Name	CP 1542SP-1 Communication Processor
Open IE Communication	TCP/IP, ISO-on-TCP, UDP
Transmission Rate	10/100 Mbit/s
Supply Voltage	24 V DC
Power Loss	6 W
Degree of Protection	IP20
Storage / Transport Temperature	-40°C to +70°C

Application scenarios

Siemens 6GK7542-6UX00-0XE0 is also frequently employed in critical industrial applications requiring high system continuity, such as power plants, petrochemical plants, and iron and steel metallurgy. In power plants, it connects the ET 200SP control system to industrial Ethernet, allowing operators to monitor the functioning of power production equipment, collect real-time data, and swiftly transmit control orders. Because these industries cannot afford production interruptions, Siemens 6GK7542-6UX00-0XE0's robust communication performance and support for the MRP media redundancy protocol ensure that the network may automatically transition to a standby link when a failure occurs, preventing production stoppages. This makes the Siemens 6GK7542-6UX00-0XE0 an excellent choice for high-availability industrial applications.

In addition, Siemens 6GK7542-6UX00-0XE0 is appropriate for rail transit, water treatment, and other public infrastructure applications. In urban water treatment plants, it connects the ET 200SP system to industrial Ethernet, allowing water treatment equipment such as pumps and filters to communicate. This enables personnel to monitor water quality, alter treatment settings in real time, and verify that released water satisfies the norm. In rail transit systems, Siemens 6GK7542-6UX00-0XE0 connects on-site control equipment to the central control system via industrial Ethernet, ensuring that signal systems and traction equipment run smoothly. Siemens 6GK7542-6UX00-0XE0 is a cost-effective and dependable option for connecting ET 200SP to industrial Ethernet.

FAQ

Q: What is the Siemens 6GK7542-6UX00-0XE0, and what does it do?

A: Siemens' 6GK7542-6UX00-0XE0 is a CP 1542SP-1 communications processor (CP) module. Its main purpose is to link a SIMATIC ET 200SP distributed I/O system or associated controllers to Industrial Ethernet networks. It serves as a dedicated communication interface, handling a variety of industrial and IT protocols to facilitate data transmission between PLCs, HMIs, and higher-level systems such as SCADA or MES.

Q: What are the main applications for this communications processor?

A: This module is critical for connecting ET 200SP stations to plant-wide networks. Key uses include open IE communication (TCP/IP, ISO-on-TCP, and UDP) with other systems, S7 routing across network boundaries for programming and diagnostics, time synchronization via NTP, diagnostic email delivery, and secure remote access via integrated IT services.

Q: Is this communication module compatible with my SIMATIC system?

A: The CP 1542SP-1 is built exclusively for the SIMATIC ET 200SP distributed I/O system. It is also compatible with S7-1500 controllers using the ET 200SP interface. It is not a typical PROFINET IO controller module but does offer higher-level Industrial Ethernet communication.
