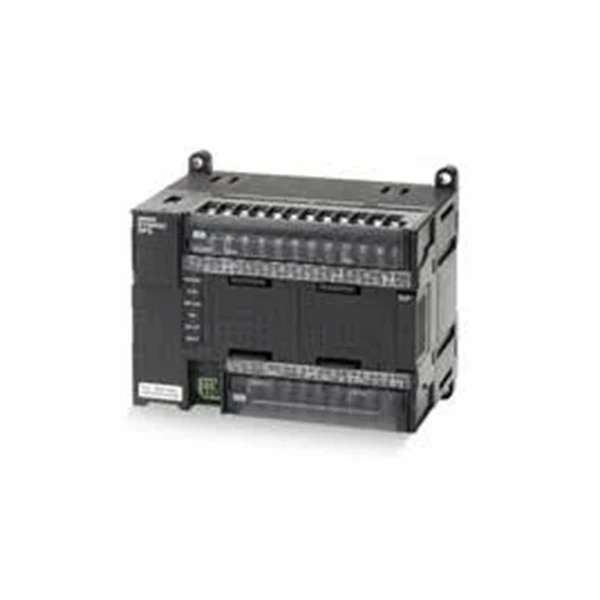

Omron CP1L-L14DT-D

Brand：Omron
Model：CP1L-L14DT-D

Inventory situation: Goods are available in stock.

For small-scale food and beverage packaging machines, the Omron CP1L-L14DT-D provides precise motion and position control to reduce packaging errors and boost production consistency. The unit's integrated 2-axis 100kHz high-speed pulse output drives stepper and servo motors for accurate bag sealing, label placement, and product filling operations, with an output response time of 0.1ms or less to eliminate misalignment and wasted materials. Its 4 built-in 100kHz single-phase high-speed counters track product movement on the line, counting up to 100,000 pulses per second to ensure every package is processed and verified with zero missed counts. The Omron CP1L-L14DT-D also supports Modbus-RTU master and slave protocols, letting it connect seamlessly to frequency inverters, temperature sensors, and digital weighing modules to build a fully integrated packaging control system, even in compact machine footprints.

In conveyor and material handling systems for warehouses and light manufacturing facilities, the Omron CP1L-L14DT-D delivers stable, low-cost control for small to medium conveyor lines and sorting equipment. Its 6 interrupt input points trigger immediate control actions within 1ms, enabling the PLC to start or stop conveyor belts instantly when a product reaches a target position, or when a safety sensor is activated, to prevent jams and improve workplace safety. The unit's 24V DC power supply operates reliably with a ±10% voltage tolerance, even in factory environments with fluctuating power, and its 5K step program capacity stores full control logic for multi-zone conveyor sorting, diverting, and accumulation tasks. The Omron CP1L-L14DT-D's NPN transistor outputs handle a maximum load current of 0.3A per point, making it compatible with standard conveyor solenoid valves, indicator lights, and motor starters without extra relay hardware, which cuts overall system cost and simplifies wiring work.

The CP1L-L14DT-D offers 14 I/O points (8 digital inputs and 6 transistor outputs) with 24V DC power supply, ensuring reliable operation in diverse environments. Its NPN-compatible inputs support direct connection with common industrial sensors like proximity switches and limit switches, while the sinking transistor outputs provide precise control for actuators such as solenoids and motors. The module features 4 high-speed counter inputs (100kHz) and 2 pulse outputs (100kHz), enabling accurate motion control for stepper or servo motors.

Equipped with a USB port, the CP1L-L14DT-D allows easy programming and data transfer using Omron's CX-Programmer software. It supports serial communication via RS-232C or RS-485 (with optional expansion boards), making it compatible with legacy systems and third-party devices. For advanced integration, the PLC can connect to CompoBus/S networks as a slave unit, enhancing flexibility in distributed control systems.

This PLC performs well in machine automation activities like conveyor belt control, packing machines, and assembly line monitoring. Its real-time clock and data logging capabilities make it easier to track production parameters and guarantee quality requirements are maintained. With CE and cULus certifications, the CP1L-L14DT-D complies with international safety and environmental laws, making it appropriate for global industrial use.

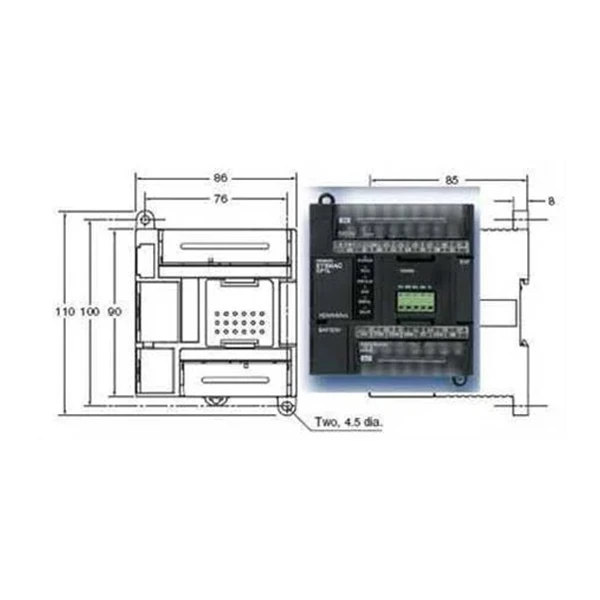

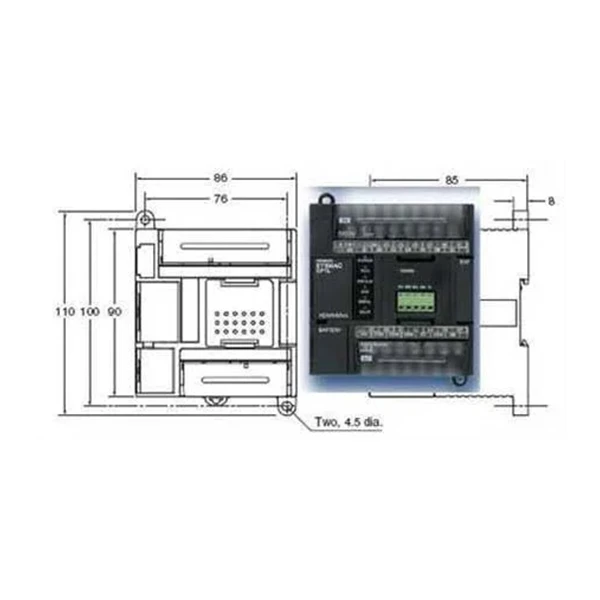

The CP1L-L14DT-D has a DIN rail mountable design for easy installation, and its removable terminal block simplifies wiring and decreases downtime during maintenance. The 5K step program memory and 10K word data memory offer plenty of room for complicated logic and data storage. The 0.55 µs logic execution time enables fast reaction to real-time inputs, which is crucial for dynamic controlTo avoid directly driving high-current devices, it is necessary to use intermediate relays or drivers for transition. The CP1L series has gradually been replaced by the CP1E series, and spare parts supply may be limited.
