6GK5005-0BA00-1AB2 Siemens(33)

Brand：Siemens
Model：6GK5005-0BA00-1AB2

Inventory situation: Goods are available in stock.

Product Description

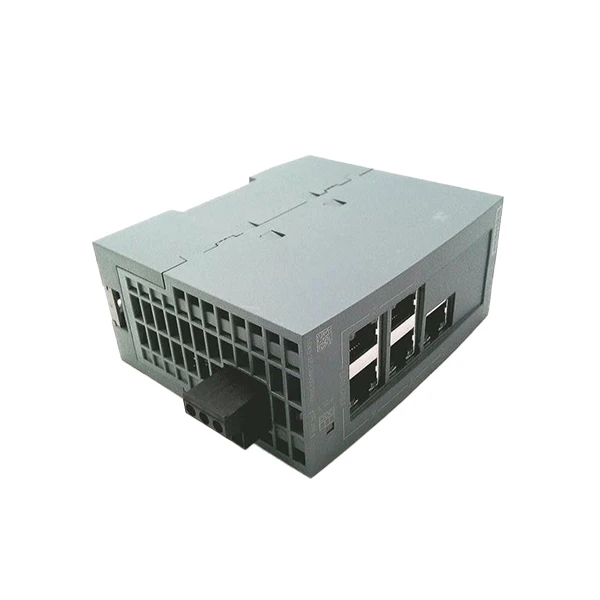

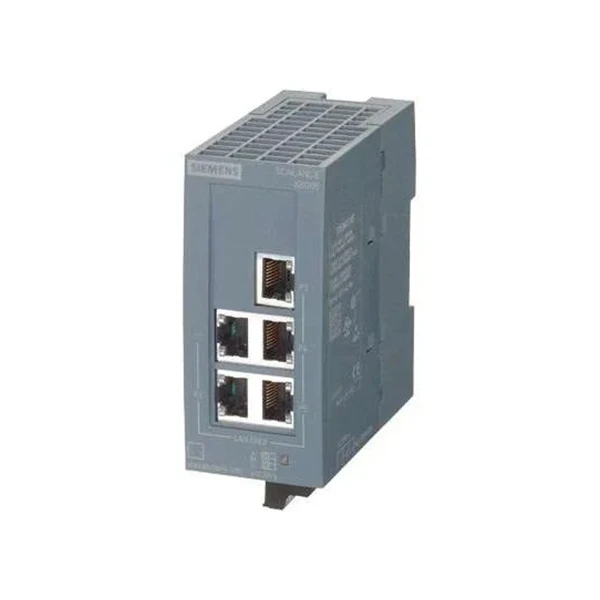

Siemens 6GK5005-0BA00-1AB2;SCALANCE X005 Industrial Ethernet Switch;Siemens Non-managed Ethernet Switch;Ethernet Switch with IP30 Protection;Ethernet Switch with a Wide Operating Temperature Range from -40℃;Ethernet Switch with RSTP/MRP Redundancy

Specifications

Dimensions	72×115×122mm
Wide Voltage Input	18-30V DC
Installation Methods	DIN Rail (TS35/EN 60715), Wall Mounting (Standard M4 screw holes are provided)
Operating Temperature	-40℃ to +70℃
Vibration Resistance	5-150Hz/2g (IEC 60068-2-6)
Shock Resistance	50g/11ms (IEC 60068-2-27)
Protection Level	IP30
Environmental Standards	RoHS 2.0 (2011/65/EU), REACH SVHC

Product features

The Siemens 6GK5005-0BA00-1AB2 is an industrial Ethernet switch. The Siemens SCALANCE X005 industrial switch, with 5×RJ45 fully adaptive ports and an IP30 dust protection rating, sets a new standard for industrial communication. It is capable of cold starting at -40°C and operating at temperatures as high as +70°C. The dual redundancy protocols RSTP/MRP achieve network self-healing in less than 500 ms, making it suitable for power ring networks and rail transit onboard systems. With certifications for IEC 61850-3 and EN 50155, it is durable against electromagnetic interference and mechanical shocks, with an MTBF exceeding 100,000 hours.

Exporting globally without worries! The 6GK5005-0BA00-1AB2 holds full certifications including IEC 61850-3, EN 50155, and DNV GL, and is compliant with RoHS 2.0 and REACH regulations, ensuring smooth access to markets in the EU, North America, and Asia-Pacific. Its 72mm ultra-thin design is compatible with high-density cabinets, and at just 0.35 kg, it saves on shipping costs.

The Siemens 6GK5005-0BA00-1AB2 switch is suited for constructing small star- and line-based network topologies, providing flexibility in network construction. It comes with LED diagnosis indicators for easy monitoring of network status and performance.

FAQ

Q: Is the switch compatible with existing Siemens devices (such as the S7-1500 PLC or SCALANCE XR series switches)?

A: The Siemens 6GK5005-0BA00-1AB2 switch is generally compatible with existing Siemens devices, such as the S7-1500 PLC and SCALANCE XR series switches.

Q: Do the 5 RJ45 ports support PoE power supply?

A: The 5 RJ45 ports of the Siemens 6GK5005-0BA00-1AB2 switch do not support PoE power supply but do support PoE powered device (PD) connection (requires an external PoE power module).

Q: What is the switching time for network redundancy (RSTP/MRP)?

A: The Siemens 6GK5005-0BA00-1AB2 switch has a switching time of less than 500 ms for RSTP network redundancy and less than 200 ms for MRP ring redundancy, ensuring zero interruption for critical operations.
