Hey there! As a supplier of Siemens VFDs (Variable Frequency Drives), I often get asked about the functions of analog input/output on these drives. So, I thought I'd take a moment to break it down for you in simple terms.
First off, let's quickly understand what analog input/output means. In the world of electronics and automation, analog signals are continuous signals that can represent a wide range of values. They're different from digital signals, which are more like on - off switches.
Analog Input on Siemens VFD
Speed Control
One of the most common functions of the analog input on a Siemens VFD is speed control. You can connect an external device, like a potentiometer or a process controller, to the VFD's analog input. The potentiometer can be adjusted to vary the voltage or current level it sends to the VFD. For example, if you turn the potentiometer one way, it increases the voltage signal. The VFD then interprets this change in the analog signal and adjusts the speed of the motor accordingly.
Let's say you're running a conveyor belt in a factory. You can use the analog input to precisely control how fast the belt moves. If you need to increase the production rate, you simply adjust the external device to send a higher - level analog signal to the VFD, and the conveyor belt speeds up.
Torque Control
Analog inputs can also be used for torque control. In some applications, like in a printing press or a winding machine, it's crucial to control the torque applied by the motor. An external sensor can measure the required torque and send an analog signal to the VFD. The VFD then modifies the motor's output to maintain the desired torque.
For instance, in a paper - winding machine, if the paper tension needs to be adjusted, the sensor will detect the change in tension and send an appropriate analog signal to the VFD. The VFD will then adjust the motor's torque to keep the paper at the right tension.
Process Variable Tracking
In industrial processes, there are often various process variables that need to be maintained. These could be temperature, pressure, or flow rate. An analog input on the Siemens VFD can be used to track these variables. A sensor measures the process variable and sends an analog signal to the VFD. The VFD can then adjust the motor speed or torque to keep the process variable within the desired range.
Imagine a water - pumping system where the pressure needs to be maintained at a certain level. A pressure sensor sends an analog signal to the VFD. If the pressure drops, the VFD increases the motor speed to boost the pressure back up.
Analog Output on Siemens VFD
Monitoring Motor Parameters
The analog output on a Siemens VFD is great for monitoring motor parameters. It can provide information about the motor's speed, current, or power consumption. You can connect a meter or a data - logging device to the analog output. This allows you to keep an eye on how the motor is performing in real - time.
For example, if you're running a large industrial motor, you can use the analog output to monitor the current draw. If the current suddenly spikes, it could indicate a problem with the motor, such as a short - circuit or a mechanical issue. By monitoring the analog output, you can catch these problems early and prevent costly breakdowns.
Feedback to a Control System
Analog outputs can also be used to provide feedback to a higher - level control system. In a complex industrial automation setup, there may be a central control system that manages multiple processes. The VFD can send an analog signal representing the motor's status to this control system.
Let's say you have a factory with multiple conveyor belts, each controlled by a Siemens VFD. The VFDs can send analog signals about the speed and status of each conveyor belt to the central control system. The control system can then make decisions based on this information, such as adjusting the overall production rate or coordinating the movement of materials between different conveyor belts.
Real - World Examples of Siemens VFDs with Analog Input/Output
Siemens 6SL3040 - 1MA01 - 0AA0 SINAMICS S120
The Siemens 6SL3040 - 1MA01 - 0AA0 SINAMICS S120 is a popular VFD that offers excellent analog input/output capabilities. It can be used in a wide range of applications, from simple speed - control tasks in small machines to complex multi - axis motion control in large industrial systems.
In a packaging machine, for example, the analog input can be used to control the speed of the packaging process. The analog output can then be used to monitor the motor's power consumption, allowing the operator to optimize the energy usage of the machine.

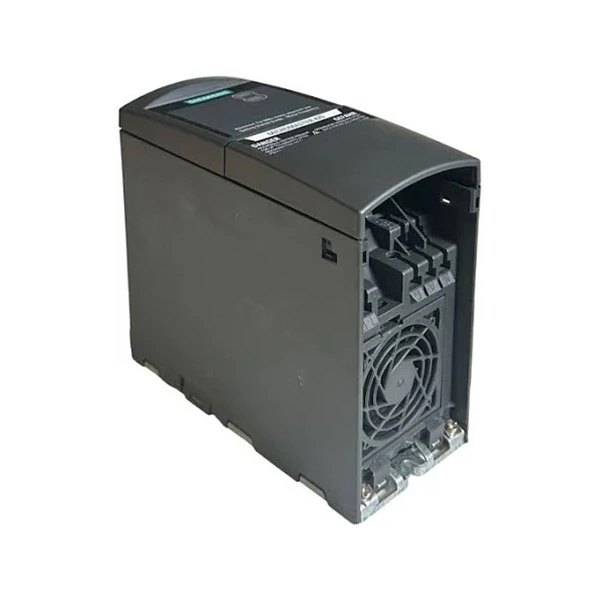

Siemens 6SE6420 - 2UD17 - 5AA1 Drives
The Siemens 6SE6420 - 2UD17 - 5AA1 Drives are well - known for their reliability and flexibility. They can handle various analog input/output configurations, making them suitable for different industrial applications.
In a food - processing plant, the analog input can be used to control the speed of a mixer based on the amount of ingredients being added. The analog output can provide feedback on the motor's temperature, which is crucial for ensuring the safety and longevity of the motor.
Siemens 6SL3210 - 1SE31 - 5UA0
The Siemens 6SL3210 - 1SE31 - 5UA0 is another powerful VFD with advanced analog input/output features. It can be integrated into complex automation systems, where precise control and monitoring are required.
In a textile - manufacturing unit, the analog input can be used to control the tension of the yarn during the weaving process. The analog output can then be used to send information about the motor's speed to a central control system for overall process optimization.
