Hey there! As a supplier of Siemens PLC modules, I often get asked about the storage capacity of data in these modules. It's a crucial aspect, especially for those looking to use Siemens PLCs in various industrial applications. So, let's dive right in and explore this topic.
First off, what exactly is a Siemens PLC module? Well, Programmable Logic Controllers (PLCs) are industrial computers used to automate manufacturing processes, control machinery, and manage various systems. Siemens is a well - known brand in the PLC market, offering a wide range of modules with different features and capabilities.
The storage capacity of Siemens PLC modules can vary greatly depending on the type of module. There are different types of memory in a PLC, including program memory, data memory, and auxiliary memory.
Program Memory
Program memory is where the user - written control program is stored. This program contains the logic that dictates how the PLC will operate. For example, in some basic Siemens S7 - 200 series PLCs, the program memory might be around 4 KB. But as we move to more advanced series like the S7 - 1200 and S7 - 1500, the program memory capacity can be much larger. The S7 - 1500 can have program memory capacities ranging from 50 KB up to several megabytes, depending on the specific model.
The size of the program memory is important because if your control program is too large for the available memory, you'll run into issues. You might have to simplify your program or upgrade to a module with more program memory.
Data Memory
Data memory is used to store the current values of variables, such as input and output signals, counters, and timers. In the S7 - 200 series, the data memory can be around 2 KB. For the S7 - 1200, it can range from a few kilobytes to tens of kilobytes. The S7 - 1500 offers even more generous data memory capacities, which can go up to several megabytes.
Let's say you're using a PLC to control a production line. You'll need to store the current status of sensors, the number of products produced (using counters), and the time elapsed for certain processes (using timers). All this data is stored in the data memory. If you have a complex production line with a large number of sensors and processes, you'll need a PLC module with sufficient data memory.
Auxiliary Memory
Auxiliary memory is used for additional storage needs, such as storing historical data or backup copies of programs. Some Siemens PLC modules have built - in auxiliary memory, while others may require external storage devices. For example, in some models, you can use SD cards to expand the auxiliary memory.
Now, let's take a look at some specific Siemens PLC modules and their storage capacities.
The Siemens 6ES7952 - 1AL00 - 0AA0 is a memory card for Siemens PLCs. It provides additional storage for programs and data. This card has a storage capacity of 128 KB, which can be quite useful for expanding the memory of a PLC that has limited internal storage.
The Siemens 6SE6400 - 1PB00 - 0AA0 Communication Module is mainly focused on communication, but it also has some internal memory for buffering data during communication processes. While its primary function isn't storage, the memory it has is crucial for ensuring smooth communication between the PLC and other devices.

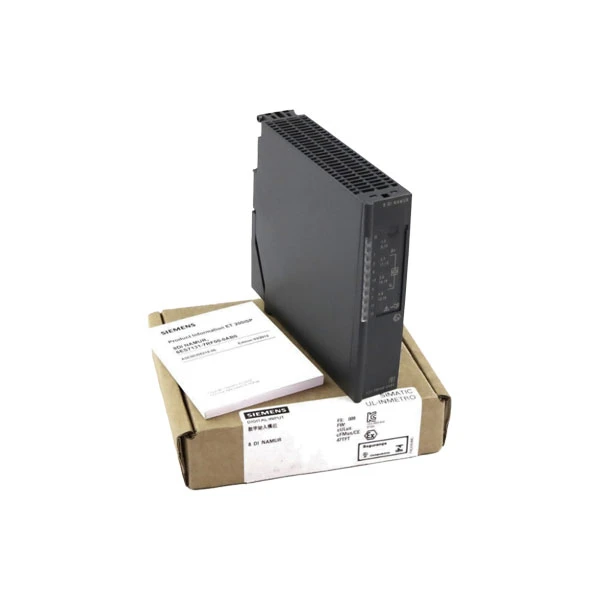

The Siemens 6ES7131 - 7RF00 - 0AB0 is an input module. It doesn't have a large amount of storage for program or data in the traditional sense. However, it does have some memory to store the input values it receives from sensors. This memory is usually small, but it's enough to hold the current input states until they are processed by the main PLC unit.
When choosing a Siemens PLC module based on storage capacity, you need to consider your specific application. If you're working on a small - scale project, like controlling a single machine, a module with a relatively small storage capacity might be sufficient. But for large - scale industrial automation projects, such as a whole factory automation system, you'll need modules with larger storage capacities.
Another factor to consider is future expansion. You might start with a small - scale project, but you may plan to expand it in the future. In that case, it's a good idea to choose a PLC module with some room for growth in terms of storage capacity.
If you're not sure which module is right for you, we're here to help. As a Siemens PLC module supplier, we have a team of experts who can assist you in selecting the module with the appropriate storage capacity for your needs. Whether you need more program memory, data memory, or auxiliary memory, we can guide you through the process.
We understand that every project is unique, and the storage requirements can vary greatly. That's why we offer a wide range of Siemens PLC modules, from basic models with limited storage to high - end modules with large storage capacities.
If you're interested in purchasing Siemens PLC modules or have any questions about storage capacity or other features, feel free to reach out to us. We're ready to have a detailed discussion with you and help you make the best choice for your project.
