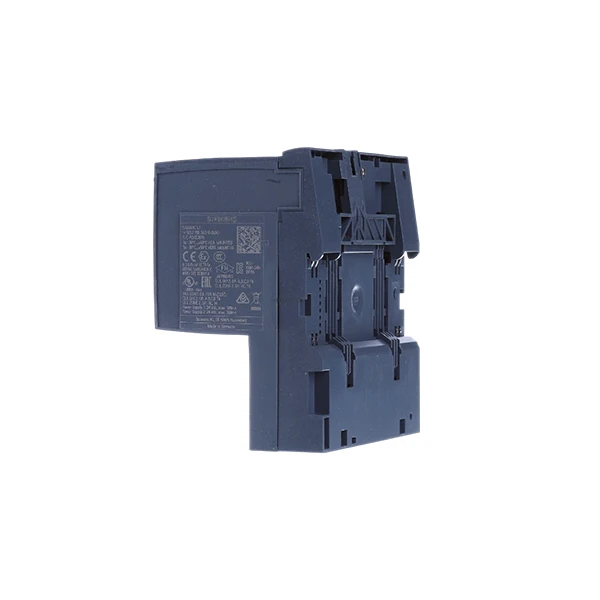

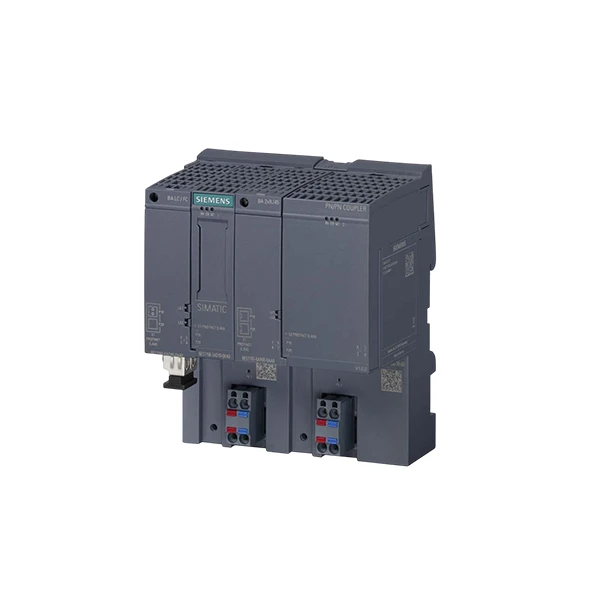

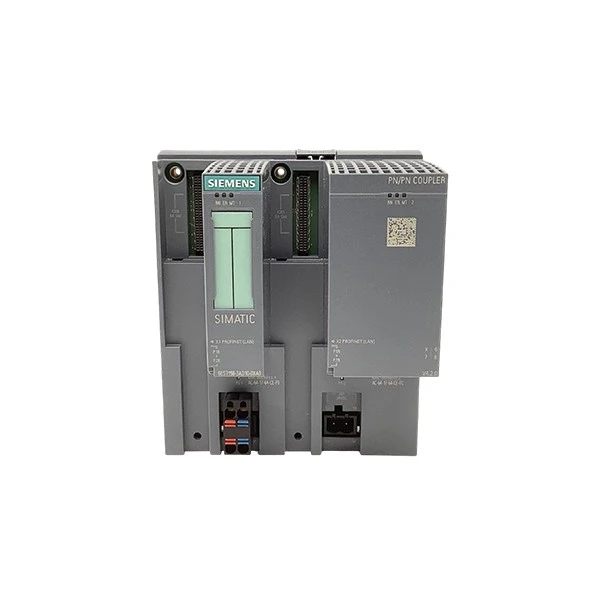

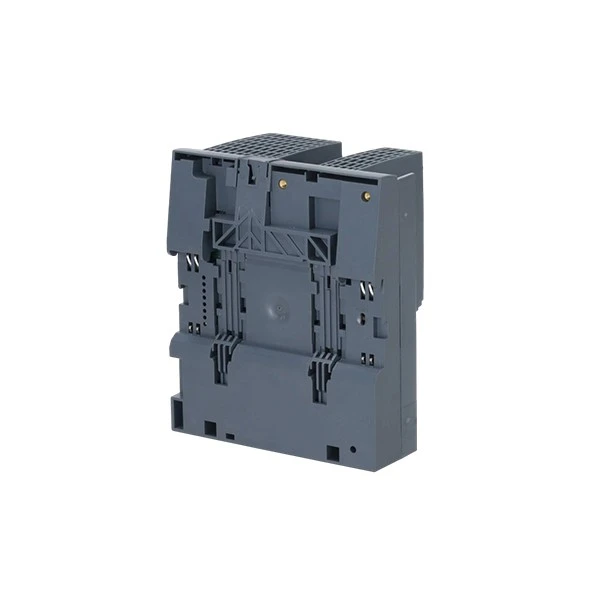

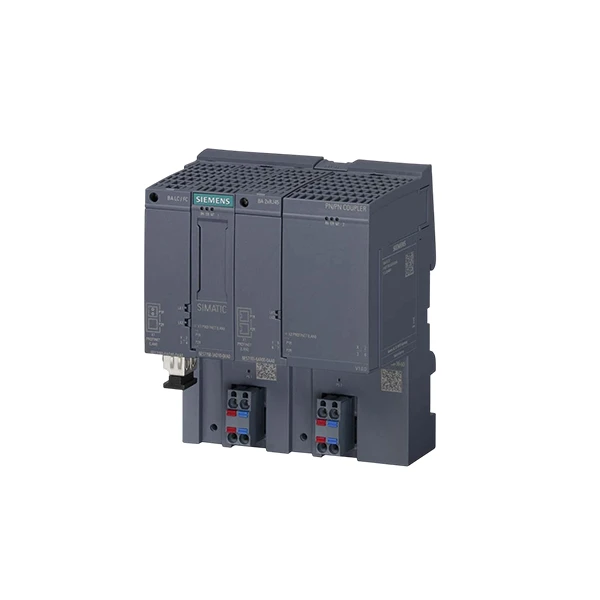

Siemens 6ES7158-3AD10-0XA0

Brand: Siemens
Model: 6ES7158-3AD10-0XA0

Inventory situation: Goods are available in stock.

Product features

Siemens 6ES7158-3AD10-0XA0 is a high-performance PROFINET PN/PN Coupler V4.0 optimized for industrial automation. This coupler, a dependable device from Siemens, a well-known brand in industrial technology, is critical in joining two independent PROFINET networks, allowing for deterministic and efficient data exchange.

The Siemens 6ES7158-3AD10-0XA0 stands out with two PROFINET connections. It has a high transfer rate of up to 100 Mbit/s, ensuring fast and smooth data delivery. Each subnet can connect up to four PN controllers, and the coupler supports a variety of communication protocols, including I/O, MSI (Master-to-Slave), MSO (Slave-to-Master), and even PROFIsafe safety communication, which protects both data and workers. It also supports media redundancy protocols such as MRP and MRPD, making it ideal for ring networks of up to 50 or 30 devices.

The Siemens 6ES7158-3AD10-0XA0 can handle a maximum of 1440 bytes of input and output data. It supports up to 16 coupling modules, each with four sub-modules (one for writing and three for reading). The maximal address space per module is 254 bytes, and per station it is 1440 bytes-more than enough for typical industrial data demands. The Siemens 6ES7158-3AD10-0XA0 is tiny, measuring 100mm × 117mm × 74mm when placed on a standard 35mm DIN rail (7.5mm or 15mm). It weighs roughly 0.253 kg, making installation simple. The gadget is designed to survive extreme industrial conditions, working in temperatures ranging from -30°C to +60°C-ideal for demanding production situations.

Specifications

Model	6ES7158-3AD10-0XA0
Product Type	SIMATIC PN/PN Coupler V4.0
Rated Voltage (DC)	24 V
Permitted Voltage Range	19.2 V - 28.8 V
Maximum Input Current	360 mA
Typical Power Consumption	4 W
Reverse Polarity Protection	Yes
Redundant Power Supply	Supported

Application scenarios

The Siemens 6ES7158-3AD10-0XA0 is also very beneficial for food and beverage processing operations. In a bottled water plant, the filling line and packaging line are frequently connected by independent PROFINET networks. The filling line checks water purity, filling volume, and machine pressure, while the packaging line controls labeling, capping, and box packing. The Siemens 6ES7158-3AD10-0XA0 connects these networks to share data such as filling output and packaging speed, ensuring that the two lines are in sync and minimize bottlenecks. Its PROFIsafe safety communication function further safeguards workers by connecting safety systems (such as emergency stop buttons) across networks, making it a reliable choice for food and beverage production safety and efficiency.

The Siemens 6ES7158-3AD10-0XA0 ensures seamless network connection in logistics and warehouse automation systems. Large warehouses frequently employ different PROFINET networks for autonomous guided vehicles (AGVs), conveyor belts, and inventory management systems. The AGV network oversees vehicle movement and route planning, the conveyor belt network transports items, and the inventory system monitors stock levels. The Siemens 6ES7158-3AD10-0XA0 connects these networks, allowing AGVs to get real-time inventory data and pick the proper commodities, while conveyor belts can modify speed based on AGV delivery status. Its small size and simple DIN rail installation fit well in warehouse control cabinets, and its diagnostic LEDs allow personnel to swiftly resolve faults, decreasing downtime in fast-paced logistics operations.

FAQ

Q: What is the Siemens 6ES7158-3AD10-0XA0, and what is its primary function?

A: The Siemens 6ES7158-3AD10-0XA0 is a SIMATIC PN/PN coupler. Its principal function is to allow deterministic data interchange between PROFINET controllers (PN controllers), including across network boundaries. Unlike a traditional network switch, which merges networks, the PN/PN Coupler functions as an intelligent bridge, allowing controlled data transfer while electrically isolating the connected PROFINET networks for security and stability.

Q: What accessories are required for operation, and are they included?

A: The 6ES7158-3AD10-0XA0 requires SIMATIC Bus Adapters (BAs) to physically connect to the PROFINET network connections. Importantly, these Bus Adapters do not fall inside the regular delivery scope. You must choose and order the proper Bus Adapters (e.g., RJ45, fiber optic) based on your network media needs.
