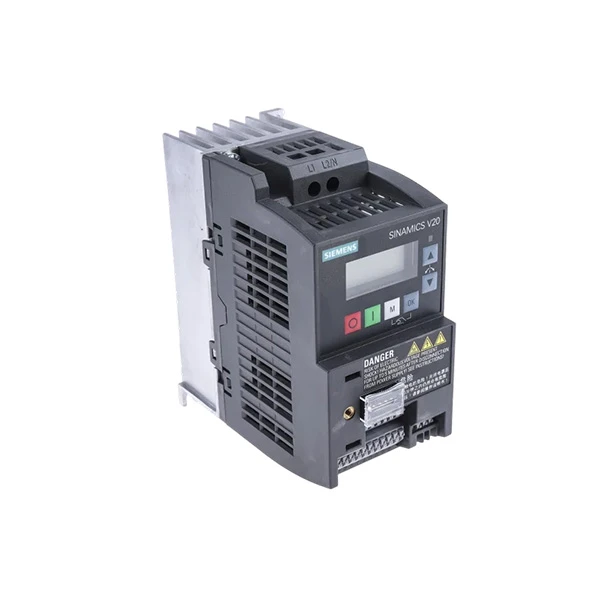

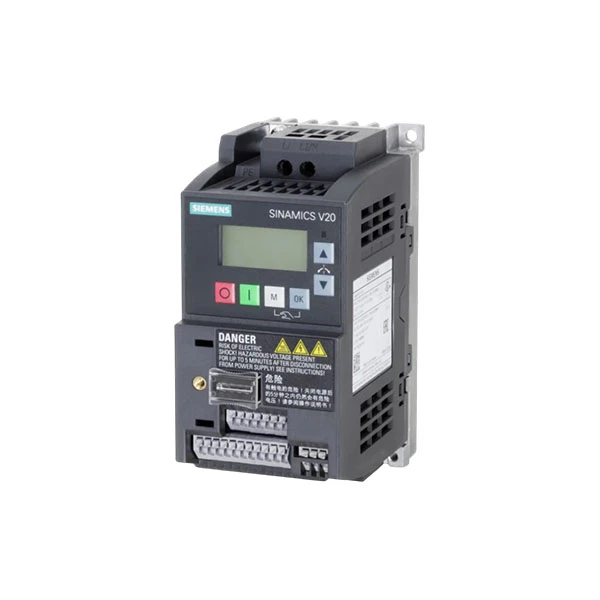

Siemens 6SL3210-5BB11-2UV1

Brand: Siemens
Model: 6SL3210-5BB11-2UV1

Inventory situation: Goods are available in stock.

Product features

Siemens 6SL3210-5BB11-2UV1 has a rated power of 0.12 kW and a rated current of 900 mA. It runs on a 200-240V AC input voltage and can tolerate voltage fluctuations ranging from -10% to +10%, as well as a frequency range of 47-63Hz. Its output voltage spans from 0 to 230V AC (three-phase) and output frequency from 0 to 550 Hz, allowing for variable motor speed control. It also has a high overload capacity-150% of the rated output current for 60 seconds in a 300-second cycle-making it suitable for short-term, heavy-load working circumstances.

Siemens 6SL3210-5BB11-2UV1 has a tiny AA size, measuring 68mm in width, 142mm in height, and 108mm in depth. This tiny size saves room in control cabinets and allows for easy installation via wall or side-by-side mounting. The inverter has an IP20 classification, which means it can withstand solid objects larger than 12.5mm (such as fingers) and is suited for use in dry interior conditions. It uses natural cooling to ensure stable operation between -10℃ and 40℃.

Siemens 6SL3210-5BB11-2UV1 has four digital inputs, two digital outputs, two analog inputs, and one analog output to handle basic control requirements. It supports USS/MODBUS RTU communication protocols, enabling for simple connection to upper-level systems for centralized control. A built-in basic operation panel (BOP) simplifies parameter setting and troubleshooting, even for inexperienced users.

This SINAMICS V20 inverter is commonly used in minor industrial applications, including centrifugal pumps, radial or axial fans, compressors, conveyors, and single drives in the process industry. It complies with numerous international standards, including CE, cULus, C-Tick (RCM), and KC, ensuring safety and reliability. Siemens 6SL3210-5BB11-2UV1, with its high efficiency (0.98) and energy-saving functions, is an excellent choice for small-scale drive systems that require stability and economy.

Specifications

Model	6SL3210-5BB11-2UV1
Product Series	SINAMICS V20
Product Type	Single-phase input, three-phase output inverter (without built-in filter)
Input Voltage	200-240V AC
Input Frequency	47-63Hz
Power Factor	0.72
Efficiency	0.98
Rated Power	0.12kW (120W)

Application scenarios

In the textile sector, Siemens 6SL3210-5BB11-2UV1 is appropriate for small textile machines such as compact yarn winders and light fabric processing equipment. It supports variable speed control via USS/MODBUS RTU connection, ensuring even fabric processing and eliminating product faults. Its natural cooling design performs consistently in regular workshop temperatures, allowing for long-term steady operation without frequent maintenance.

Siemens 6SL3210-5BB11-2UV1 benefits both water treatment and HVAC systems. It is frequently used to operate tiny centrifugal pumps and axial fans in residential or business structures. The inverter changes motor speed based on real demand, increasing energy efficiency (up to 0.98) and extending pump and fan life. The tiny AA size (68×142×108mm) provides for convenient installation in narrow control cabinets.

Small packaging and conveyor lines in the food and beverage industry rely on Siemens 6SL3210-5BB11-2UV1 to run smoothly. It manages smaller conveyor belts, small mixers, and light packaging machines, providing a consistent speed and minimizing mechanical damage. With four digital inputs and two digital outputs, it is simple to connect to basic control systems, addressing the automation needs of small production lines.

FAQ

Q: What is the Siemens 6SL3210-5BB11-2UV1, and what is it used for?

A: The Siemens 6SL3210-5BB11-2UV1 is a model from the SINAMICS V20 family of variable frequency drives (VFDs). It is a Compact Performance Class Drive Module with a rating of 0.75 kW at 400 V. This component is the primary power unit that precisely controls the speed and torque of conventional three-phase AC motors utilized in pumps, fans, conveyors, compressors, and mixers. Its principal function is to optimise energy consumption, improve process control, and enable soft starting of machines.

Q: Is the Control Unit (CU) included with the 6SL3210-5BB11-2UV1 Drive Module?

A: No. The Siemens 6SL3210-5BB11-2UV1 is precisely a Drive Module (Power Module). To create a fully functional drive, it must be combined with a separate, plug-in SINAMICS V20 Control Unit (CU), such as the CU250S-2. The Control Unit houses all of the intelligence, communication ports (e.g., PROFINET, PROFIBUS), and the operator interface. This versatility is an important element of the V20 series, allowing for variable design and easy upgrades.
